COMET CFX514N Triplexer 3 output1,3 -90 / 130 - 200 / 380-500 Mhz

COMET CFX-514N Triplexer 3 outputs with cable: 2 PL + 1 N. From 1.3-90 MHz -130 - 200 MHz and 380-500 Mhz, Triplexer for 50-144-432 Mhz. more Manufacturer: comet Reference CFX514N

Make the first review

COMET CFX-514N Triplexer 3 output1,3 - 90/130 - 200 / 380-500 Mhz

Comet calls these "triplexers", but they are also known as combiners or dividers.

TX and RX from three separate radios at the same time, on a single tri-band antenna

Combine a tri-band radio with three separate antenna outputs into a single tri-band antenna

Isolation between connectors is more than 55dB.

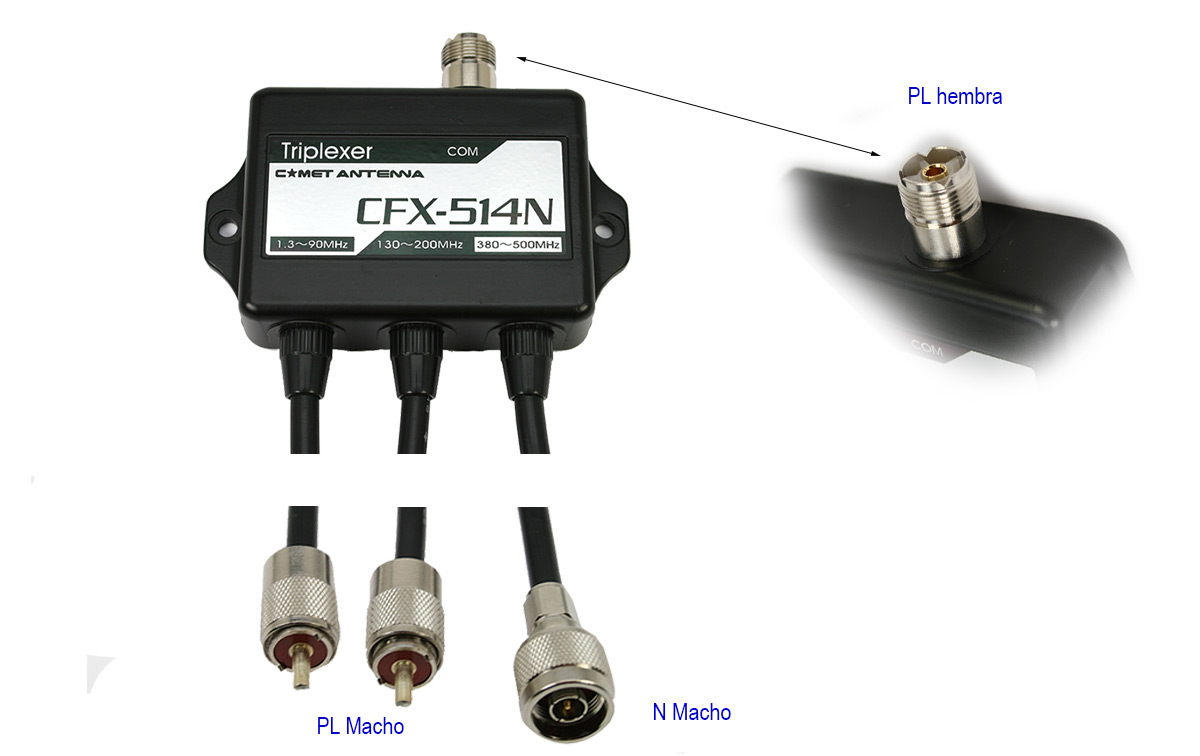

Connectors: Output cables 2 x PL259 Plugs + 1 x Type N

not available

107,93€ incl. VAT

89,20€ w/o VAT

Delivery price from 30,25€

Description

COMET CFX514N

COMET CFX-514N Triplexer 3 outputs with 35 cm long cable: It has 2 PL Male connectors 1 N male connector. Frequencies from 1.3-90 MHz -130 - 200 MHz and 380-500 Mhz, Triplexer for frequencies 50-144-432 Mhz. Comet calls these "triplexers", but they are also known as combiners or dividers.
They are basically band-pass filters, which simultaneously pass RF in both directions through the common connector, while band-pass filters provide a high degree of isolation between the ports.
Made in Japan.

comet cfx514n triplexor 3 salida1,3 - 90 /130 - 200/ 380-500 mhz

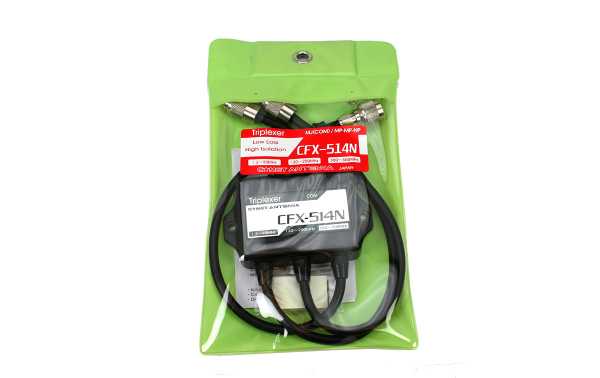

Kit contents

1 CFX-514N Duplexer

comet cfx-514n triplexor 3 salida1,3 - 90 /130 - 200/ 380-500 mhz

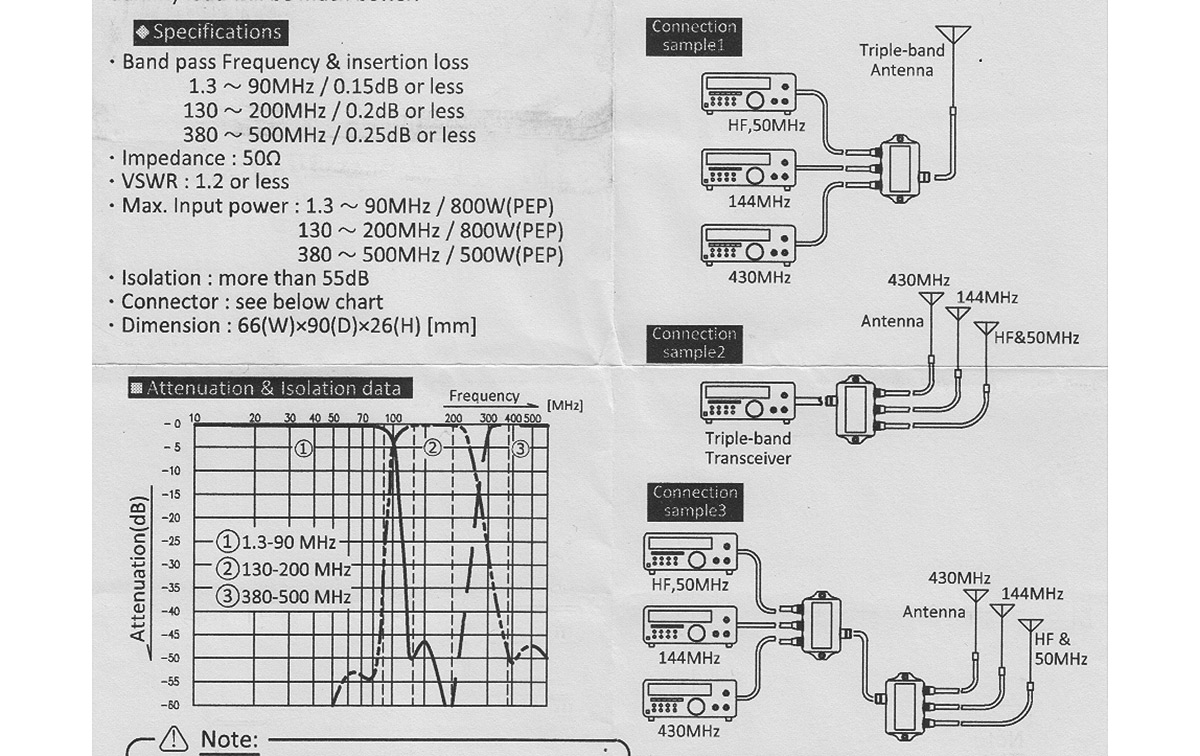

Characteristics

A Frequency 1.3 -90 Mhz
A PL male connector
A Power 800 watts
B Frequency 130- 200 Mhz
B PL male connector
B Power 800 watts
C Frequency 380-500 Mhz
C N male connector
C Power 500 watts
F Female PL input connector
B PL male connector
C N male connector
F Connector in chassis PL female input
Impedance 50 ohms

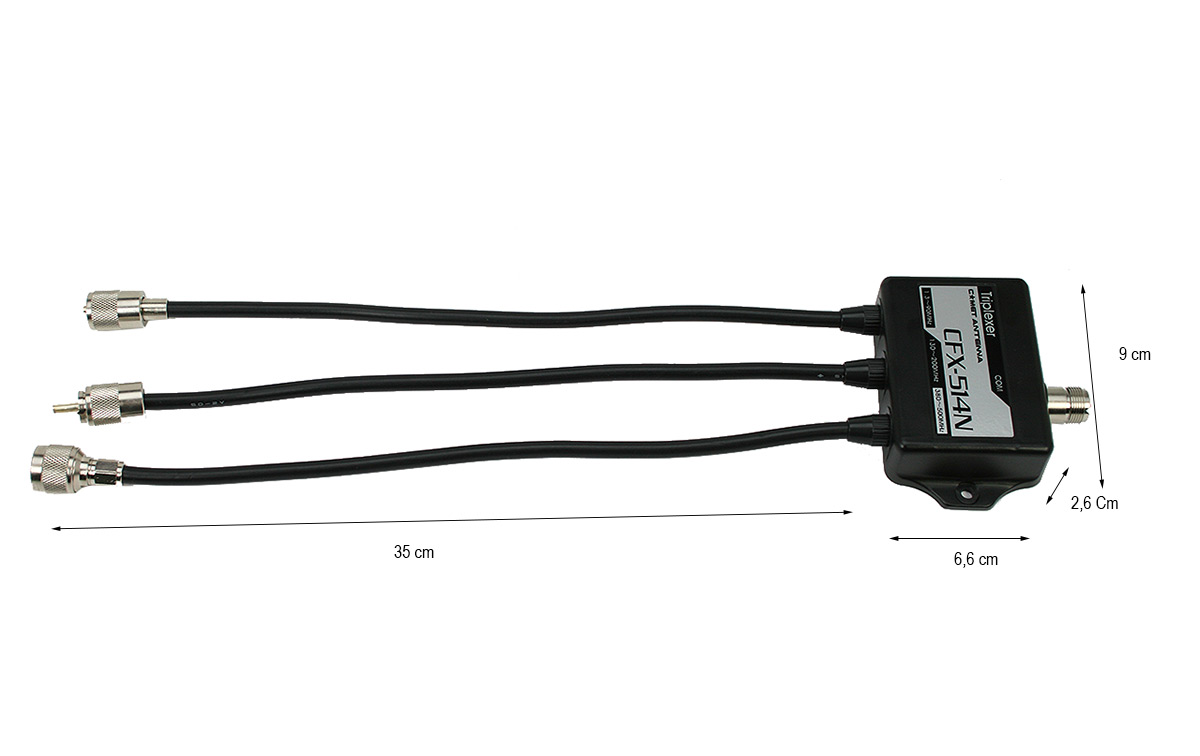

Coment 5D-2VS coaxial cable length 35 cm
Dimensions 66 x 90 x 26 mm
Weight 410 gr.
