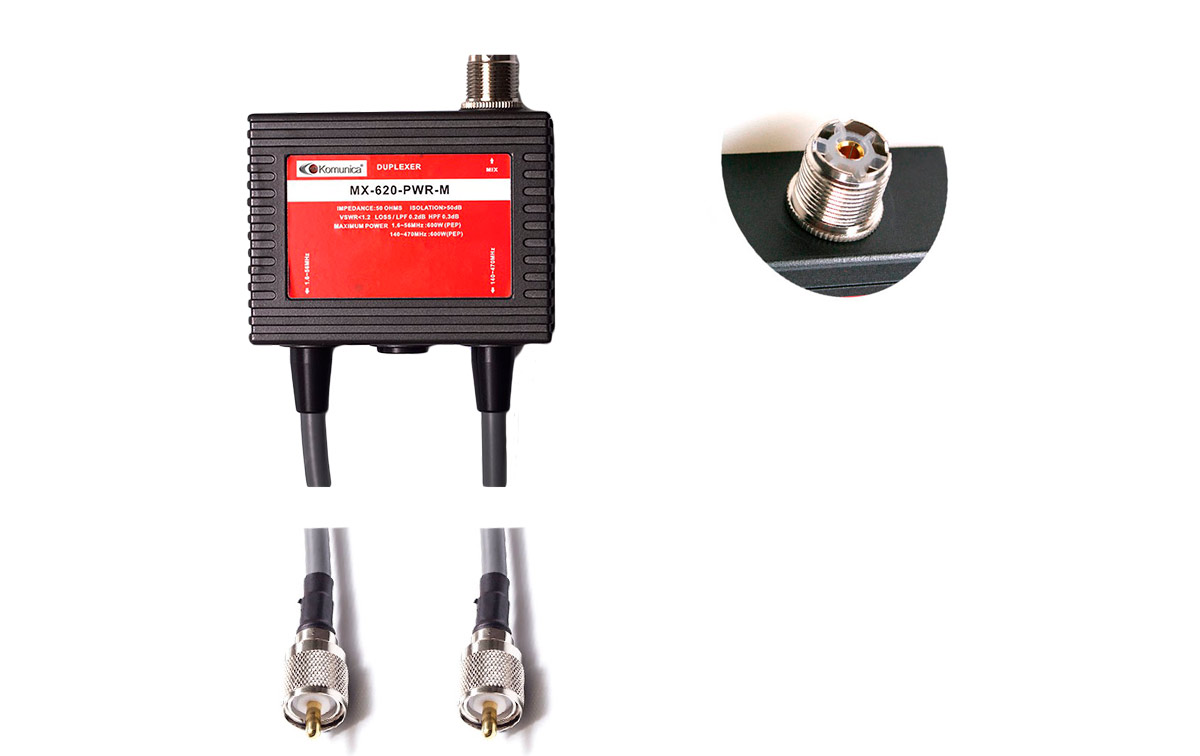

KOMUNICA MX-620-PWR-M Duplexer 1.6 to 56 / 140 to 470 Mhz.

DIAMOND MX-620-PWR-M

The KOMUNICA MX-620-PWR-M is a duplexer that allows operation in two different frequency ranges using a single antenna.

Compatible Frequency Ranges:
1.6 to 56 MHz: This frequency range covers from 1.6 megahertz to 56 megahertz. It is common in the HF (high frequency) band and is important for shortwave amateur radio communication, among other applications.
140 to 470 MHz: This frequency range covers from 140 megahertz to 470 megahertz. It is typically used in the VHF (Very High Frequency) band and the UHF (Ultra High Frequency) band. This range is common in amateur radio communications, security services, commercial communications, and other radio services.
The MX-620-PWR-M duplexer allows two radio equipment or communication systems to operate in these two frequency ranges simultaneously and with a single antenna. This is useful in situations where efficient communication on multiple frequency bands is required without the need to install multiple antennas. The duplexer separates and properly routes the transmission and reception signals to the corresponding antenna.

This type of device is especially beneficial for amateur radio, security and communications services where it is necessary to operate in different frequency bands with a shared antenna infrastructure. The duplexer facilitates operation and allows greater flexibility in communication.

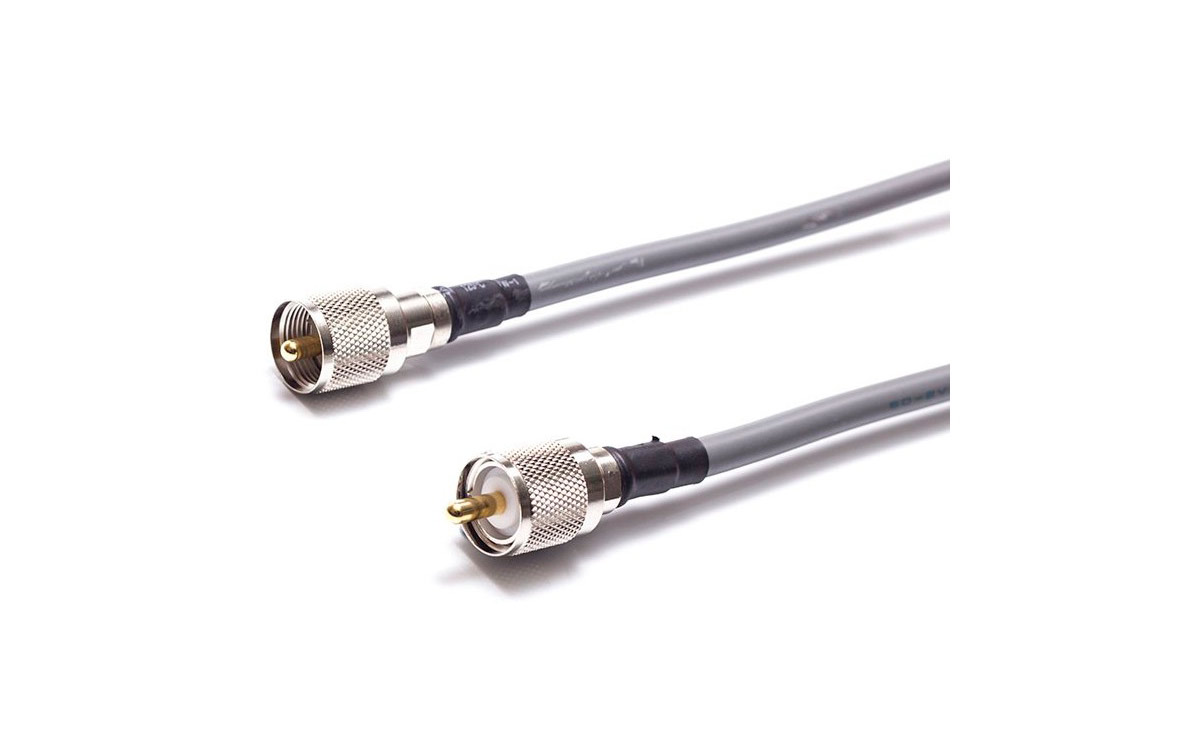

Cable length 35 cm RG 5D-2V
Connector: MIX: PL Female
Connector: PL Male 1.6-56 Mhz
Connector: PL Male 140-470 Mhz

Characteristics
