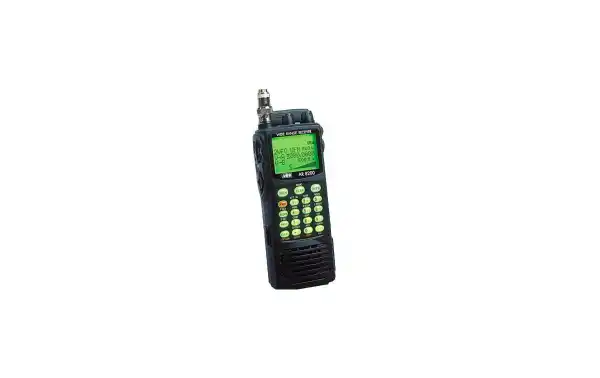

AOR AR8200-MK3 PORTABLE SCANNER 500 kHz-3000MHz

AOR AR8200-MK3

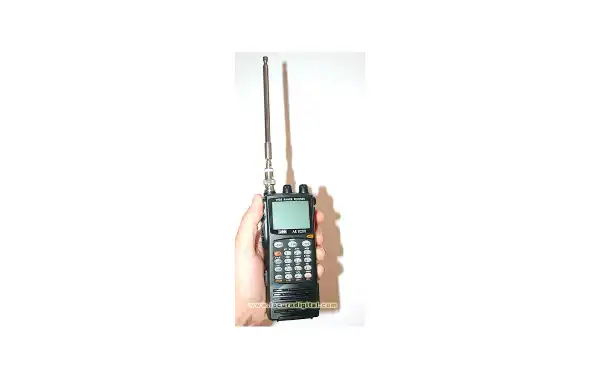

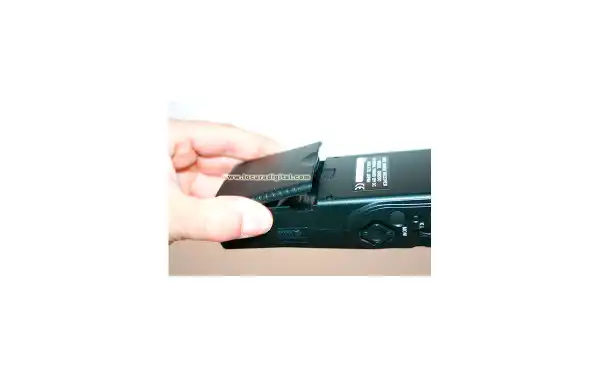

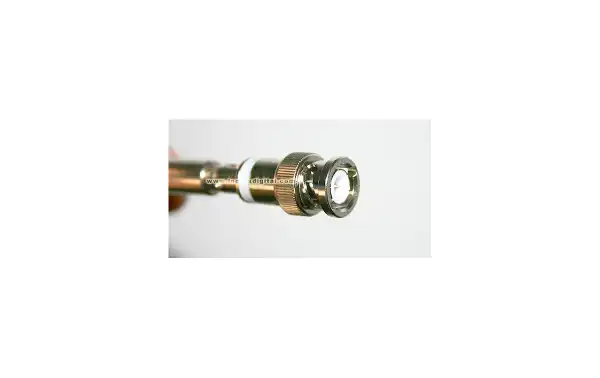

The AR-8200 Series 2 is the last model of portable scanner developed by AOR, includes the last technological innovations of the digital microprocessors in receivers of continuous coverage. Has an even better Temperature Compensated Crystal Oscillator for solid frequency stability with minimal internal spurious, this type of reference crystals is only used usually in receivers of high rank. There is a huge continuous coverage from 500 Khz. to 3000 Mhz. With an excellent sensitivity and an easy operating for strong signals. The classic rubber antenna had been replaced by a telescopic one with swivel bracket (that gives us much more possibilities, besides to include a ferrite antenna specially designed for the A.M. reception). The consumption of batteries is much more improved, causing that the equipment has a greater autonomy. The Aerial Band its correctly implemented with jumps of 8,33 (and a third), the step adjustments and the displacements are totally programmable to accede to any strange band. Reception in all ways: WFM, NFM, SFM (Super wide FM), WAM, AM, NAM. It incorporates a 3 Khz filter in sideband. For a real reintegration of the carrier without frequency shift. It has pre-programmed frequencies plan factory default, which makes it selecting the frequency shift, step, mode, etc, officially used in that band (being able to change it in a manual way). It’s possible to add up to 12 characters by memorised channel for better recognition of the stored frequencies. It has a small band analyzer, that can show you the activity of a band (adjustable from 10 Mhz to 100 Khz) showing us in a visual way the activity within a band, allowing us to move into it in a fast and simple way. Its memory banks are totally dynamics, this means that we can redefine its size to fit it to our necessities, and we can decide the number of channels containing each bank depending on our necessities. An optional cable exists (with included interface) to communicate with a PC (the software is free and you can download it through the internet), being able to control it easily from the computer, memory transfer, etc. It has are slot where you can easily insert the cards with optional functions that there are at your disposal: EM-8200 (extension memory Card), CT-8200 (CTCSS Decoder), RU-8200 (Voice Recording Card), TE-8200 (tones eliminator Card) and VI-8200 (analogical decrypt Card).







Features

• Receive frequency range: 500 KHz - 3 GHz
• Receive modes: WFM, NFM, SFM, WAM, AM, NAM, USB, LSB, CW
• Freq. step: 17 different steps including 1 MHz
• Sensitivity: 500 KHz - 1.9 MHz AM 3.5 uV (10dB S/N)
  • 1.9 - 30 MHz AM 2.0 uV (10dB S/N)
  • 30 - 470 MHz AM 1.5 uV (10dB S/N)
  • NFM 0.85uV (12 dB SINAD)
  • WFM 1.0 uV (12 dB SINAD)
  • 470 - 1,040 MHz NFM 0.8 uV (12 dB SINAD)
  • 1,040 - 2,040 MHz NFM 4.5 uV (12dB SINAD)
  • 2,040 - 3,000 MHz NFM 14 uV (12dB SINAD)
• Selectivity: SSB/NAM 3 KHz (-6dB) / 9 KHz (-40dB)
  • AM/SFM 9 KHz(-6dB) / 20 KHz (-40dB)
  • WAM/NFM 12 KHz(-6dB) / 25 KHz (-40dB)
  • WFM 150 KHz(-3dB) / 380 KHz (-20dB)

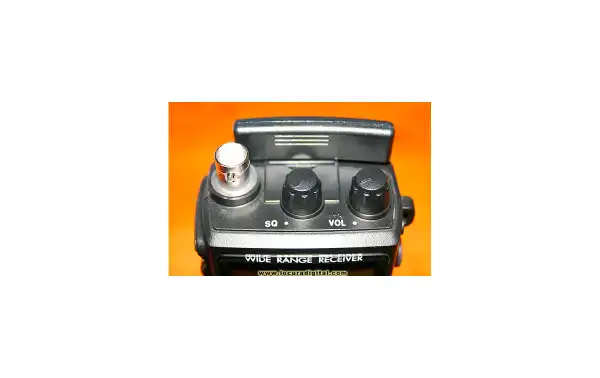

• Antenna connector: BNC
• Impedance: 50 ohms
• Audio Output: 120 mW (8 ohm) 10% THD

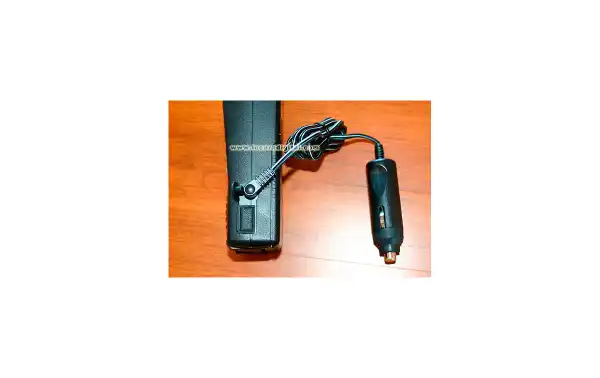

• Power requirement: 9 - 16 V DC
• Current Drain: 190mA at rated output (120mW audio output)
• Operating temperature: -5 to 50 degrees (C)
• Dimensions: 61(W) x 143(H) x 39 (D) (mm) Projections excluded
• Weight: Approx. 340 g
