ZETAGI HP-201 SWR Meter / Wattmeter 2000 w. 26 to 30Mhz 3 to 200Mhz

ZETAGI HP-201 SWR Meter / Wattmeter 2000 w. for the HF frequency from 26 to 30 Mhz. It is also capable of measuring SWR in the range 3 to 200 Mhz. But - ATTENTION: in the range from 3 to 200 Mhz. it only measures SWR, it does NOT measure power, excep more Manufacturer: zetagi Reference HP201

(5,0) 1 Reviews

zetagi
ZETAGI HP-201 SWR Meter / Wattmeter 2000 w. 26 to 30Mhz 3 to 200Mhz ZETAGI HP-201 ROE meter / Wattmeter 2000 w. 26 to 30Mhz 3 to 200Mhz Wattmeter 2000 w. 26 to 30Mhz 3 to 200Mhz ZETAGI HP-201 PL female connectors x 2
ZETAGI HP-201 SWR Meter / Wattmeter 2000 w. 26 to 30Mhz 3 to 200Mhz
discontinued

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

ZETAGI HP-201

ZETAGI HP-201 SWR Meter / Wattmeter 2000 w. for the HF frequency from 26 to 30 Mhz. It is also capable of measuring SWR in the range 3 to 200 Mhz. But - ATTENTION: in the range from 3 to 200 Mhz. it only measures SWR, it does NOT measure power, except for the HF range that goes from 26 to 30 Mhz where it can measure both power and stationary (SWR).

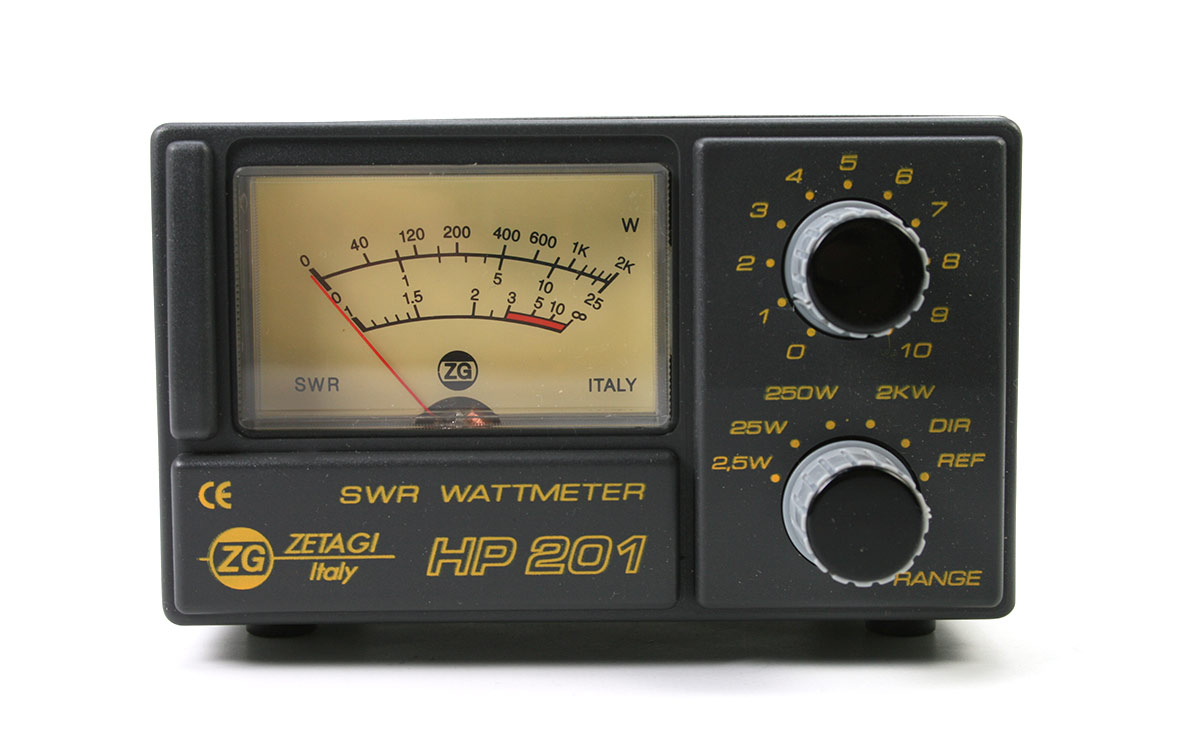

Display has two readings:
1 - PWD: Power
2 - SWR: Stationary

medidor roe / watimetro 2000 w. 26 a 30 mhz 3 a 200 mhz

kit content
  • 1 HP201 SWR Meter

medidor roe / watimetro 2000 w. 26 a 30 mhz 3 a 200 mhz

Features

  • Frequency 3 to 200 Mhz
  • Maximum power 200 watts
  • VSWR:1.00
  • Power selector: 2.5/25/250/2000 watts
  • Loss 0.05dB
  • POWER: Reflected Power
  • SWR: Stationary
  • Impedance 50 ohms
  • Connector x 2 PL female
  • Analog Display
  • Steel Case

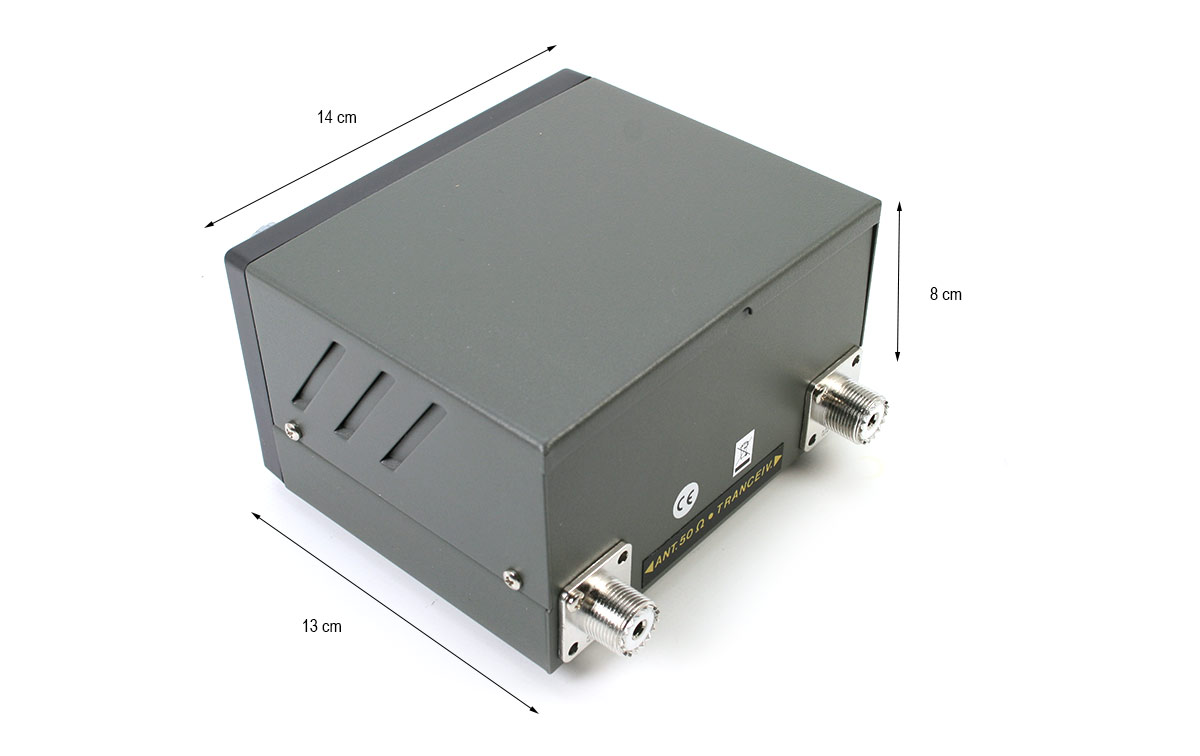

  • Measurements: 14 x 13 x 8 cm
  • Weight 730 gr.
