ICOM SP-41

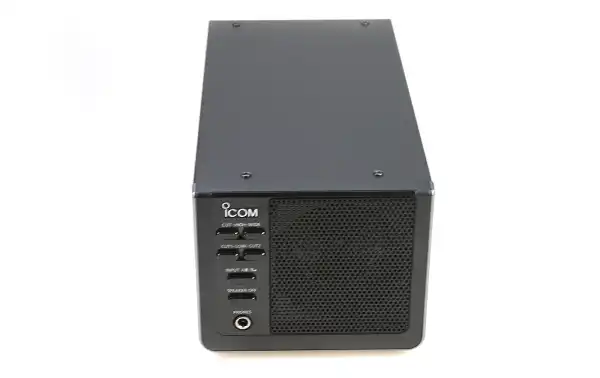

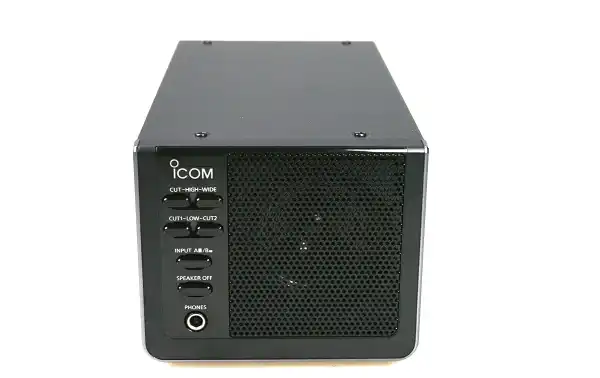

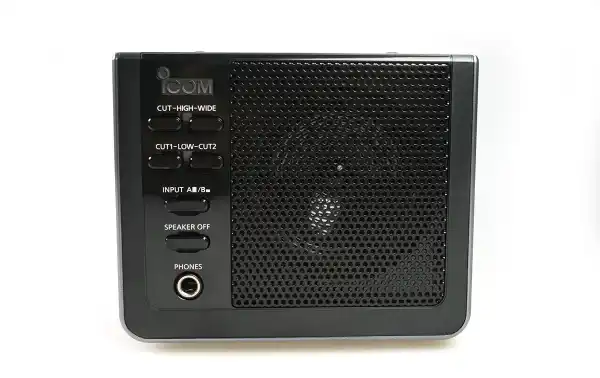

The Icom SP-41 is a communications speaker designed to complement Icom series transceivers, offering optimized acoustic performance and perfect aesthetic integration with models such as the IC-7600 and IC-7610 . Its design and dimensions are designed to fit perfectly with this equipment, providing a high quality audio solution that improves the reception experience in demanding amateur radio environments. However, its versatility allows it to also be used with other transceivers of the brand, such as the IC-7300 and IC-9700 , as well as with radio equipment from other brands that require an external speaker with similar characteristics.
One of the SP-41 's key advantages is its ability to deliver clean, clear audio, making transmissions easier to understand under a variety of operating conditions. Thanks to its built-in audio filter system, the user can reduce both high and low frequencies by two levels each, allowing for customized tuning that improves signal intelligibility and reduces unwanted noise. This is particularly useful in situations where the received signal is subject to interference or affected by ambient noise.

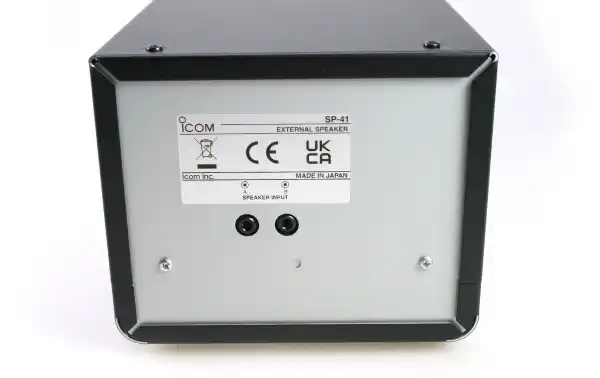

In addition to its filters, this speakerphone features two switchable inputs , allowing two radios to be connected simultaneously and switched between them as needed. This feature is ideal for those who work with multiple teams and need an efficient audio solution without the need to constantly plug and unplug cables.
The SP-41 also features a mute function , which allows you to temporarily turn off the sound when needed. A headphone output jack is located on the front of the device, which, when used, automatically mutes the speaker , providing a seamless transition between external and internal audio without the need for additional adjustments.

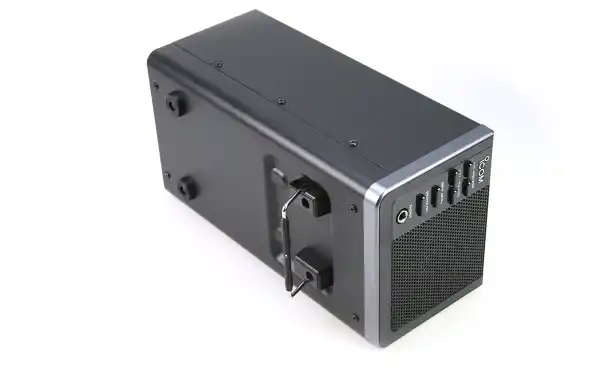

To ensure proper alignment with the transceivers it is used with, the speaker is equipped with a tilt stand , allowing it to be ergonomically positioned next to the radio, optimizing both accessibility and aesthetics of the assembly.

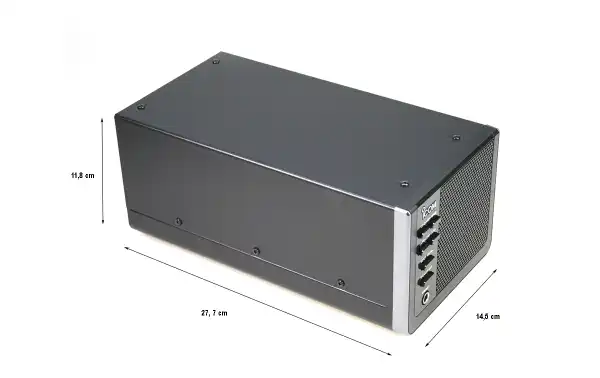

In terms of its technical specifications, the Icom SP-41 features an impedance of 8 ohms , offering an audio response suitable for use with communications transceivers. Its output power is 7 watts , allowing it to provide adequate volume even in noisy environments or when using low intensity signals. In terms of size, the device has dimensions of 145 mm wide, 118 mm high and 277 mm deep , with a weight of 2.2 kg , giving it a robust yet manageable structure, ideal for both fixed and mobile radio stations.
Kit contents
- 1 SP-41 Speaker

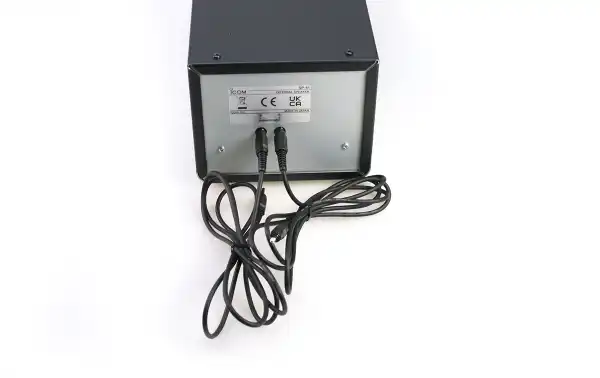

- 2 Speaker to equipment connection cables, 2.5 mm mono jack, length 1.3 m
