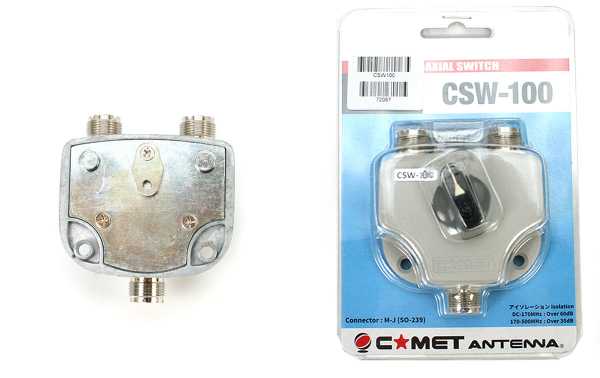

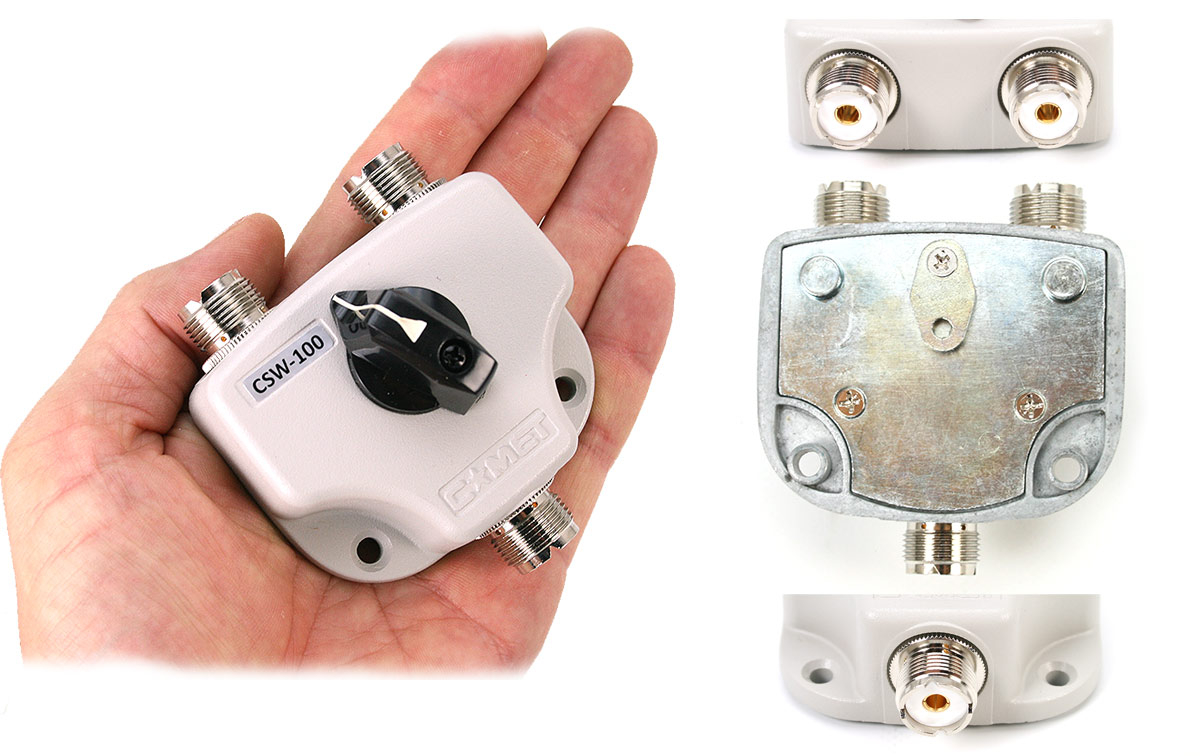

COMET CSW-100 PL Female switch for 2 high quality antennas

CSW-100

csw-100 Female PL switch for 2 high quality antennas.
This ANTENNA switch allows us to connect two antennas for the same station. With this switch we can choose between transmitting with one antenna or another.
It is ideal for HF, VHF and UHF equipment as it allows us to optimize our station to the maximum.

Ground-shunt switch:
When a position is not active, antennas or equipment connected to that position are automatically grounded (earthed). This has several advantages:

Protection against electrical discharges: By grounding the antenna, the radio system and antenna are protected against possible atmospheric discharges, such as lightning or static, reducing the risk of damage.
Noise Reduction: Grounding can help reduce background noise or unwanted interference to reception.
Greater safety for the equipment: If there are voltage spikes or interference, the current tends to discharge to ground instead of passing to the equipment, protecting the connected devices.

Characteristics

• Frequency 0- 500 Mhz
• Losses 0.2 dB
• Maximum power 1500 watts 0-30 Mhz
• Maximum power 1500 watts 30-170 Mhz
• Maximum power 500 watts 170-500 Mhz
• Impedance 50 Ohms
• Insertion loss less than 0.2 dB
• SWR 1.2
• Dimensions 72 x 78 x 47 mm
• 3 x PL female connectors
• Weight 430 gr.
