MFJ-1700C Switch for 6 antennas and 6 transceivers

MFJ-1700-CB

MFJ-1700C Switch for 6 antennas and 6 transceivers

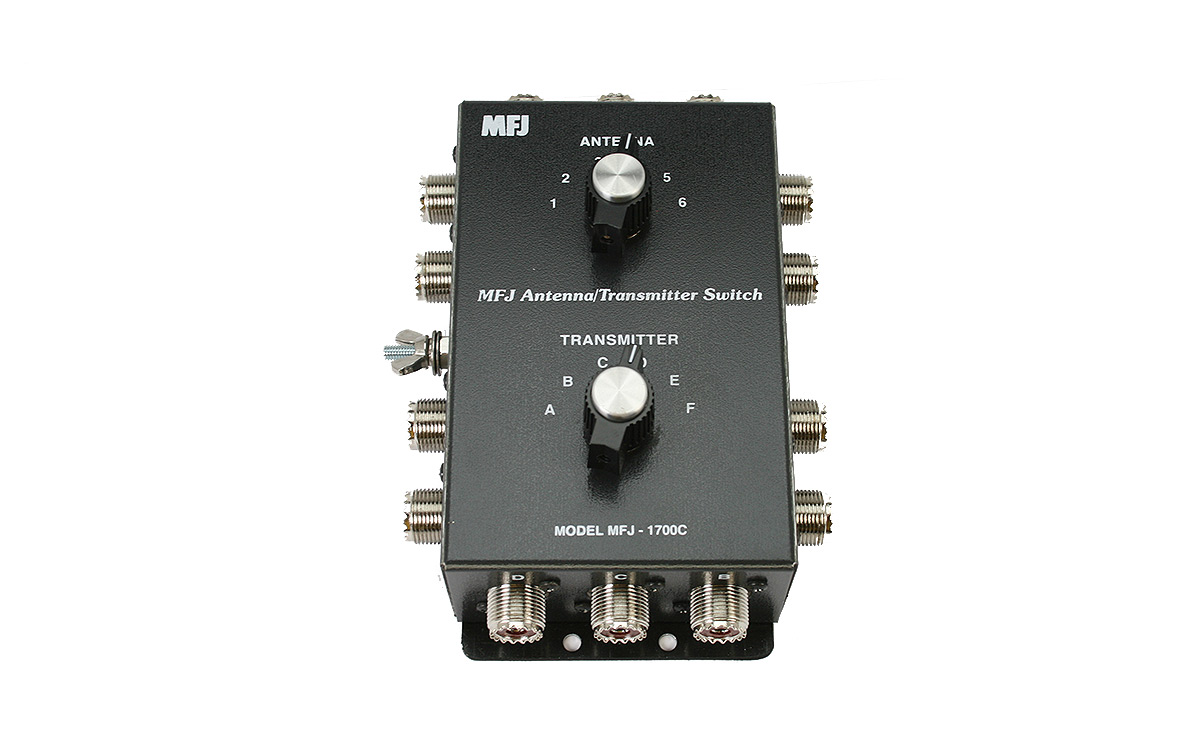

MFJ-1700C Six Position Antenna / Transciver Switch. This deluxe high-power antenna / transceiver switch has two ceramic rotary switches that allow you to select from 1 to 6 antennas and 1 to 6 transceivers in any combination. You can also connect an antenna tuner, wattmeter, linear, etc. so that it is always connected to the antenna and the selected transceiver. Handles 2kW PEP for 50-75 Ohm loads. Unused terminals are automatically grounded. It has SO-239 connectors. Covers 1.8 - 30 MHz. 10 x 3 x 1 1/2 inches. Surge protection and have much better insulation between connectors and cables internally

Characteristics

• Frequency covers 1.8 - 30 Mhz
• Maximum power 2000 watts

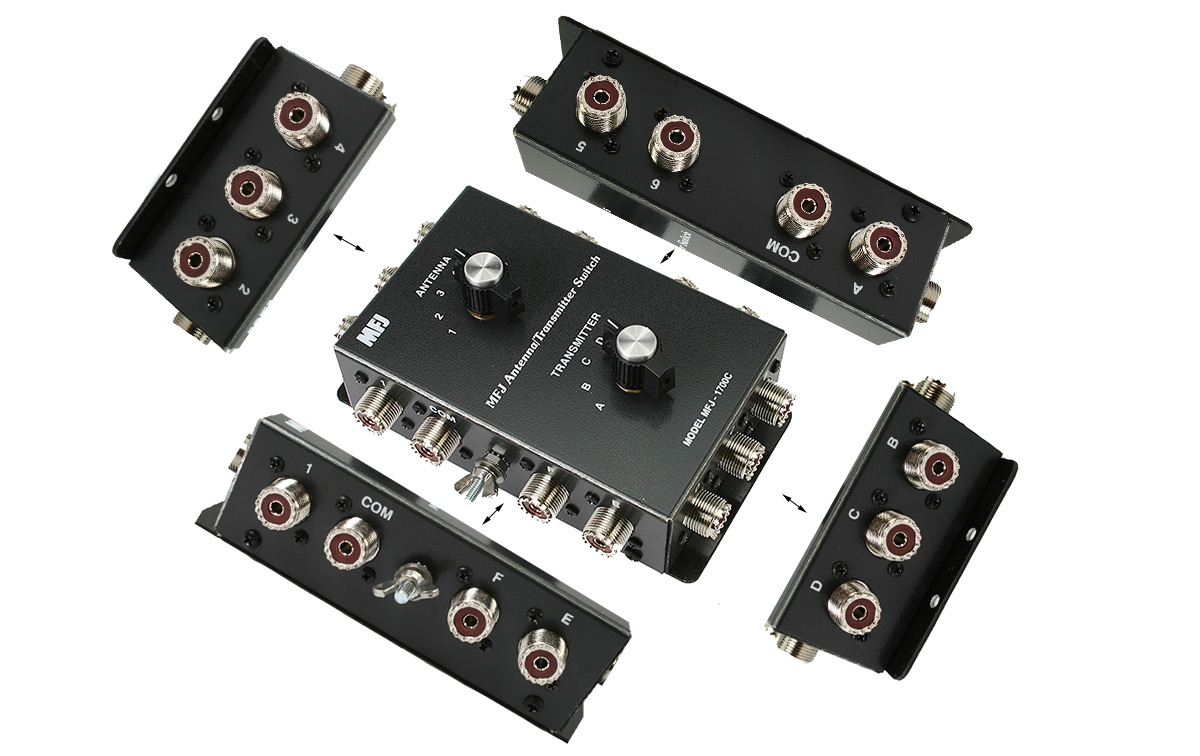

• 14 x PL female connectors
• Metal casing
• Impedance 50 -75 ohms

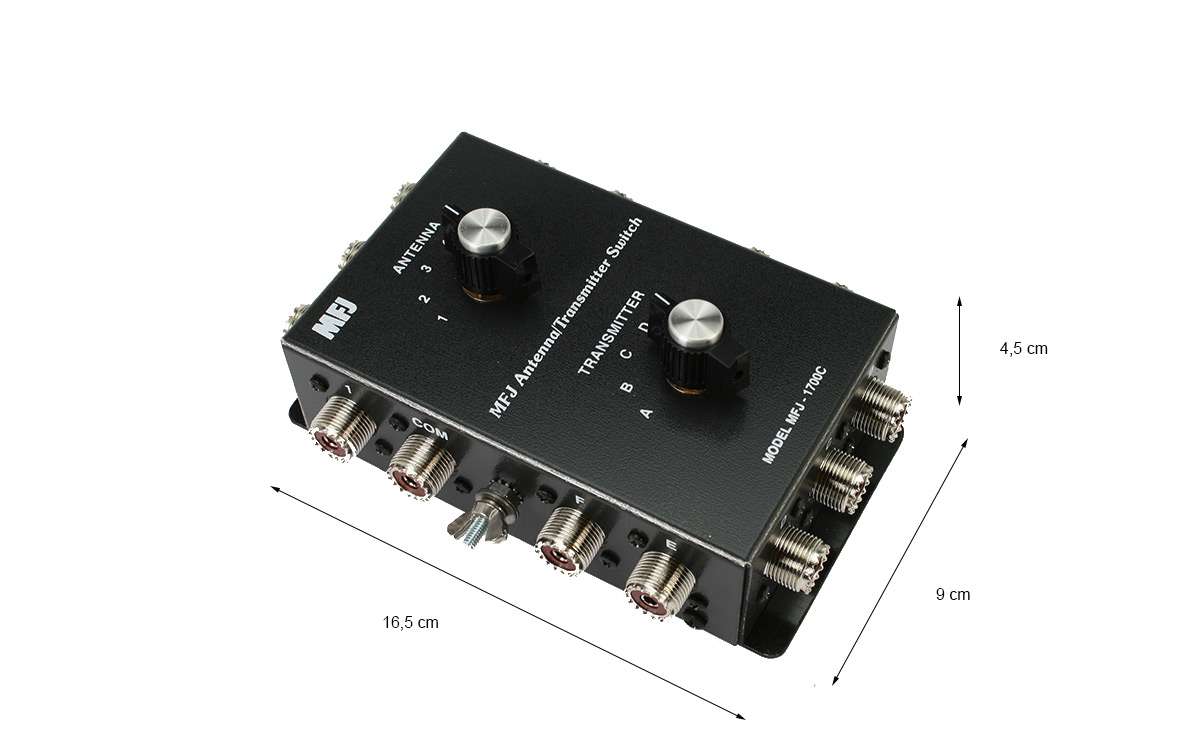

• Measures 4.5 x 9 x 16.5 cm
• Weight 720 gr.
