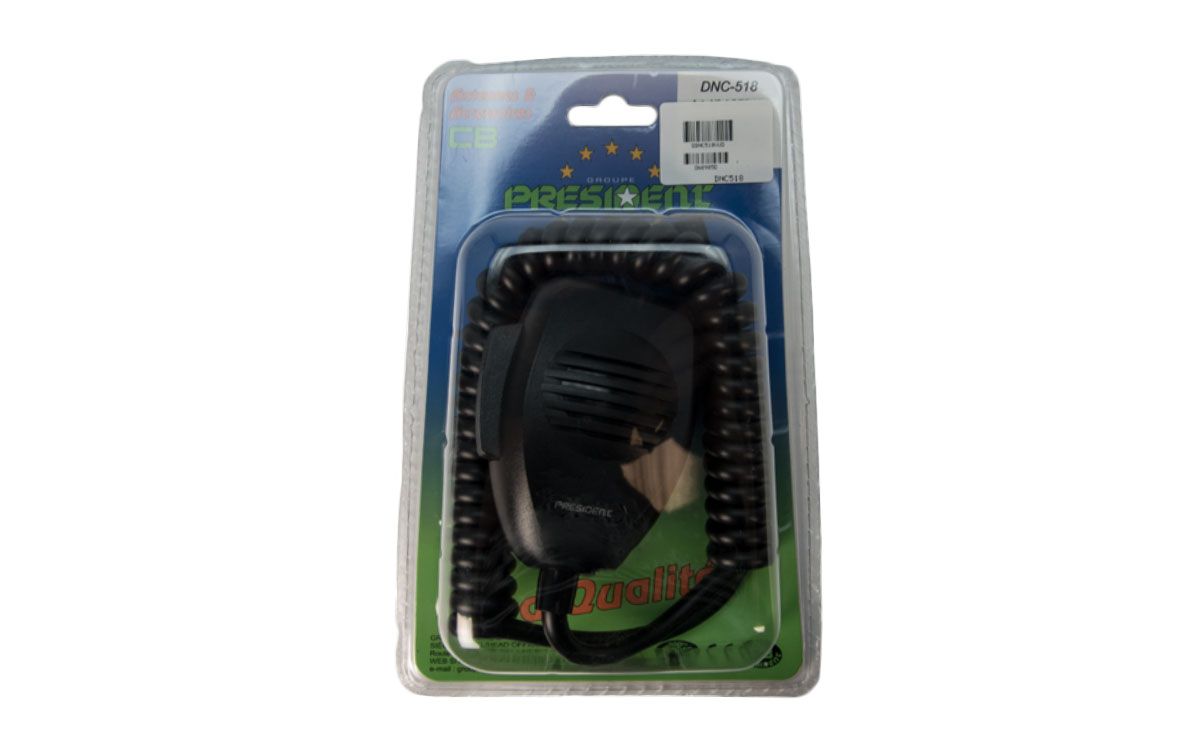

DNC518 PRESIDENT Original microphone 6 pin

DNC518

The DNC518 PRESIDENT is an original microphone with a 6-pin connector designed specifically for President stations using this configuration. Here are some important features and precautions associated with this microphone:

6-Pin Connector: The microphone uses a 6-pin connector, meaning it is compatible with President stations that support this specific configuration.

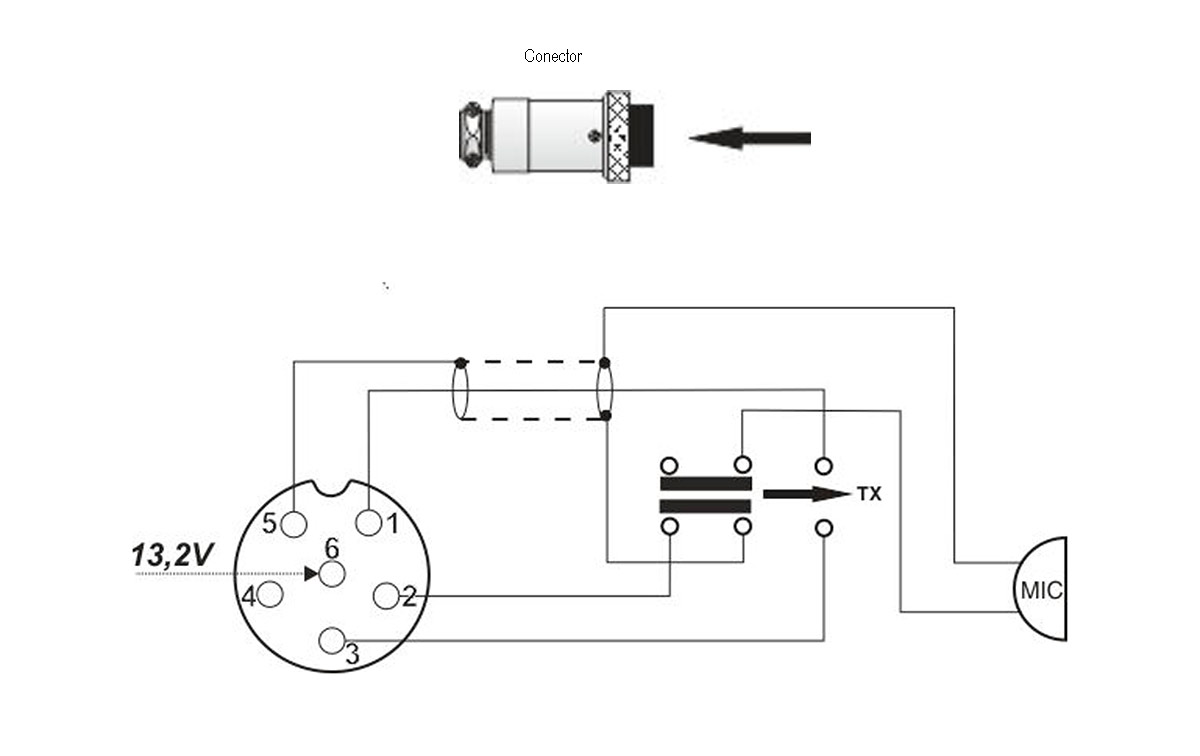

13.2V voltage on Pin 6: In the transmitter connector, it is mentioned that pin 6 supplies a voltage of 13.2V. It is crucial to keep this information in mind, as some microphones may require power for specific functions. Replacing a dynamic microphone with an electret, or vice versa, may affect operation due to differences in power supply.

Compatibility with President Station Models:

President George
President Grant Classic
President Herbert
President Herbert New
President JFK
President JFK Classic
President Jackson
President James
President Johnson
President Johnson Classic
President Taylor New
President Valery Classic
President Wilson
Caution on Replacing Microphones: Please note that a dynamic microphone should not be replaced with an electret microphone and vice versa. This is essential because dynamic and electret microphones have different electrical requirements and operating characteristics. Replacing one with another may result in poor performance or damage to the transmitter.

The DNC518 PRESIDENT is an original microphone designed for use with specific President stations. Compatibility with a variety of models and power information on pin 6 provide important details for proper installation and use. Caution about replacing microphones highlights the importance of using the correct type of microphone to ensure optimal performance and avoid electrical problems.
