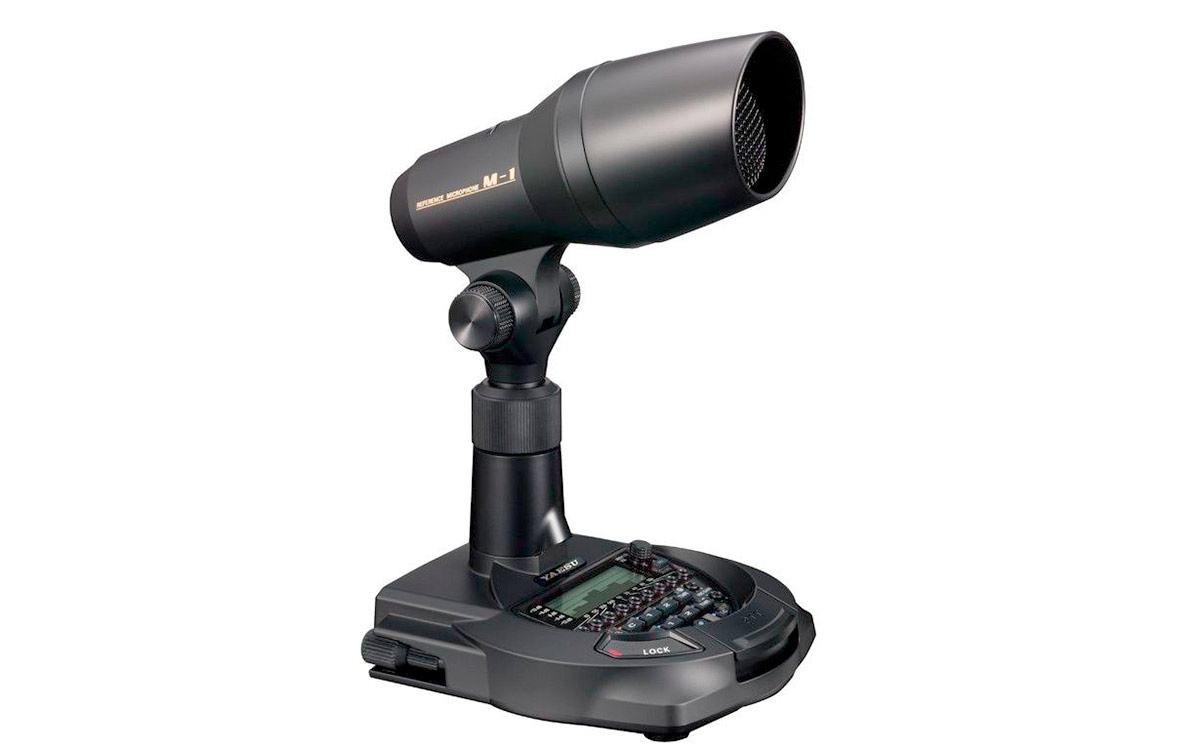

YAESU M-1

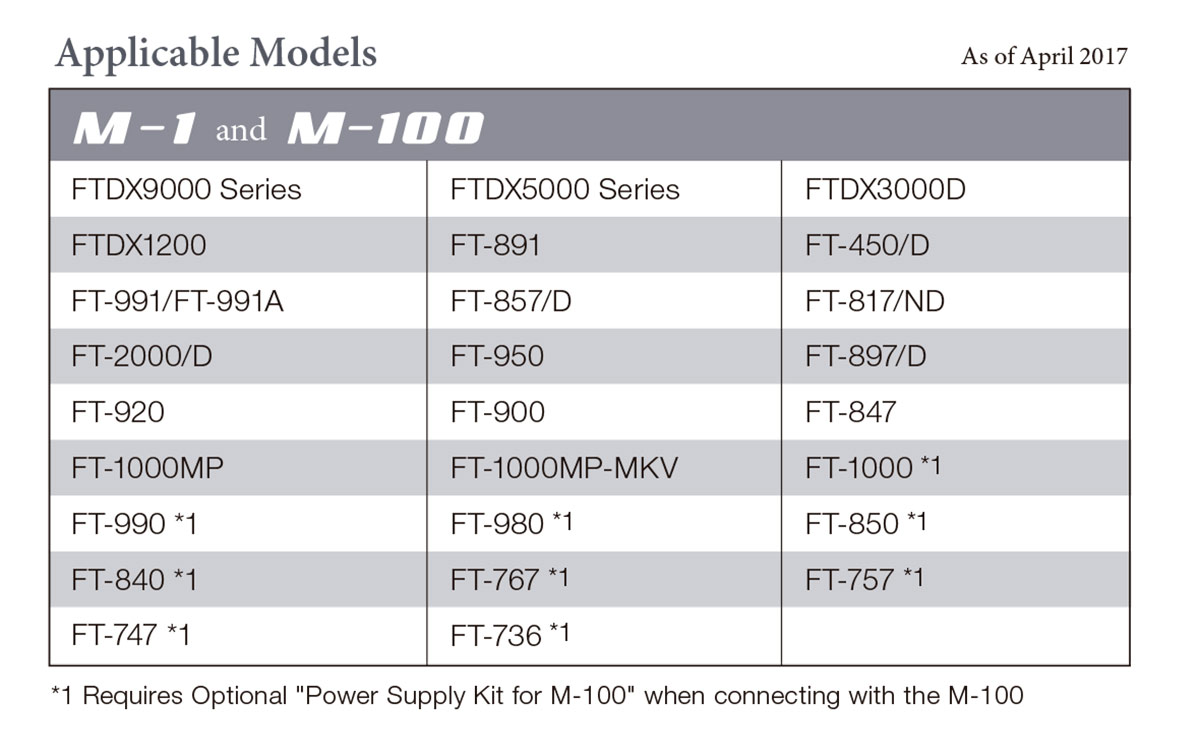

YAESU M-1 Desktop microphone for YAESU HF stations: FTDX 9000, FTDX 5000, FTDX 3000, FTDX 1200, FT-991A, FT-891 and its FT-450 series.
The M-1 microphone is designed for Radio Amateurs who need a high level of performance when it comes to long-distance HF communications. We can use the microphone mounted on the base with a double-axis support that allows us to find the ideal position for our transmission site.
Includes a 3.5mm headphone jack that allows for audio monitoring. This is useful for users to listen to their own stream and adjust the audio quality as needed.
Microphone Element:
It uses a condenser microphone element that provides higher frequency response and clear, crisp audio characteristics. It also incorporates a dynamic element that offers rich bass and midrange tones, suitable for local communications.
Nine Band Graphic Equalizer:
It offers a nine-band graphic equalizer with independent frequency adjustments for each microphone element. This allows users to customize the frequency response to their preferences.
Independent Volume Control:
Each microphone element has a separate volume control to adjust output levels independently.
Two Frequency Response Memories and "Through" Mode:
It allows two frequency response memories to be stored and offers a "through" mode for added versatility.
Treble Bracing Fairing (TBC):
The TBC (Treble Cowed Boost) enhances voice response in the 1 to 1.5 kHz range, providing a unique tonal texture.
Soft and Comfortable Tube Air Cylinder PTT:
The PTT key uses three cylinder air chambers that provide smooth and comfortable operation. Non-contact magnetic switch ensures long life and stable operation.
Voice Recording and Playback (Manipulator):
It offers a voice recording and playback function of up to 20 seconds, which can be used both to confirm audio pitch and as a simple voice keyer.
These features make the Yaesu M-1 a versatile and advanced microphone, designed to meet the needs of the most demanding amateur radio operators.
English Manual in PDF
