Maas X-5000-N Antenna TRIPLE band VHF-UHF-SHF 144/430/1200 Mhz Fiber

X-5000-N MAAS Germany. TRIPLE band antenna VHF-UHF-SHF 144/430/1200 Mhz. It is made of fiberglass and measures 1.5 meters. VHF 144 Mhz gain: 4.5 dBi, UHF 430 Mhz: 8.3 dBi and SHF 1,200 Mhz 11.7 dBi. N female connector. more Manufacturer: maas Reference MAASX5000N

Make the first review

maas-x-5000-n-triple-band-antenna-vhf-uhf-shf-144-430-1200-mhz-fiber-glass-length-1-5-meters

available

99,95€ incl. VAT

82,60€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

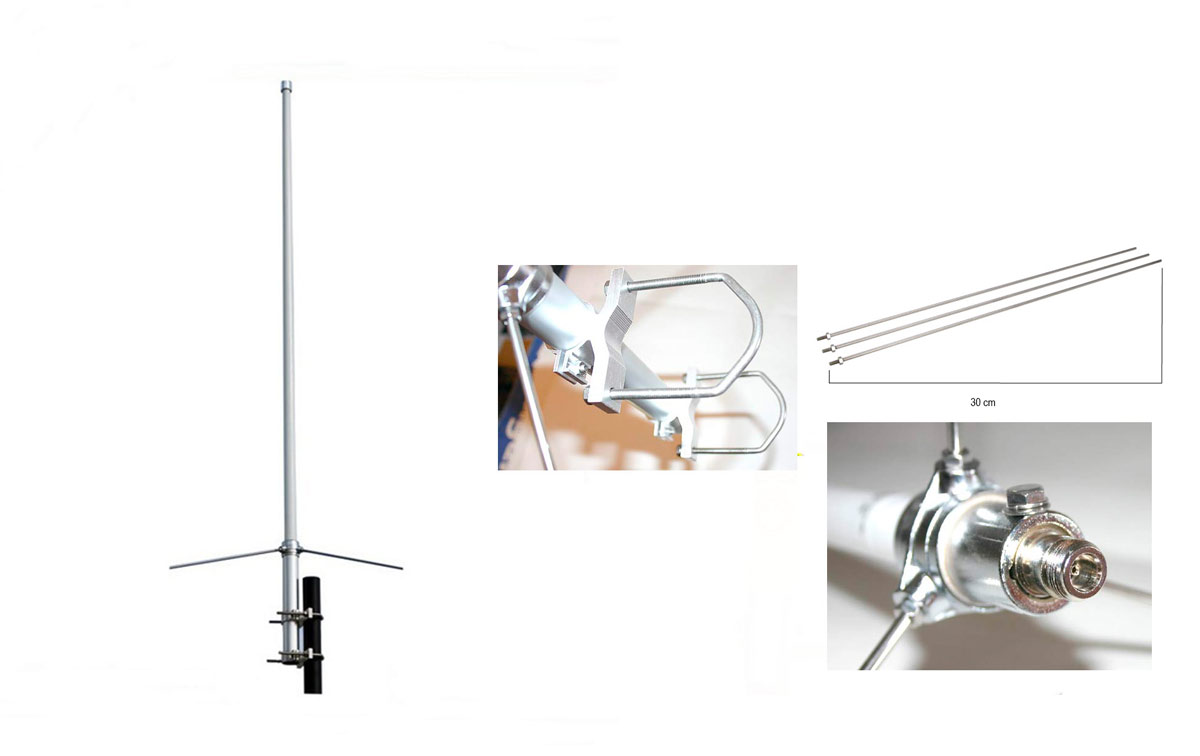

MAAS X5000N

X-5000-N MAAS made in Germany. TRIPLE band VHF-UHF-SHF antenna 144/430/1200 Mhz. It is made of fiberglass and measures 1.6 meters. VHF 144 Mhz gain: 4.5 dBi, UHF 430 Mhz: 8.3 dBi and SHF 1,200 Mhz 11.7 dBi. N female connector.
You may be interested in the PL adapter see link click <<< here >>>

maas-x-5000-n-antena-triple-banda-vhf-uhf-shf-144-430-1200-mhz-fibra-de-vidreo-longitud-1-5-metros

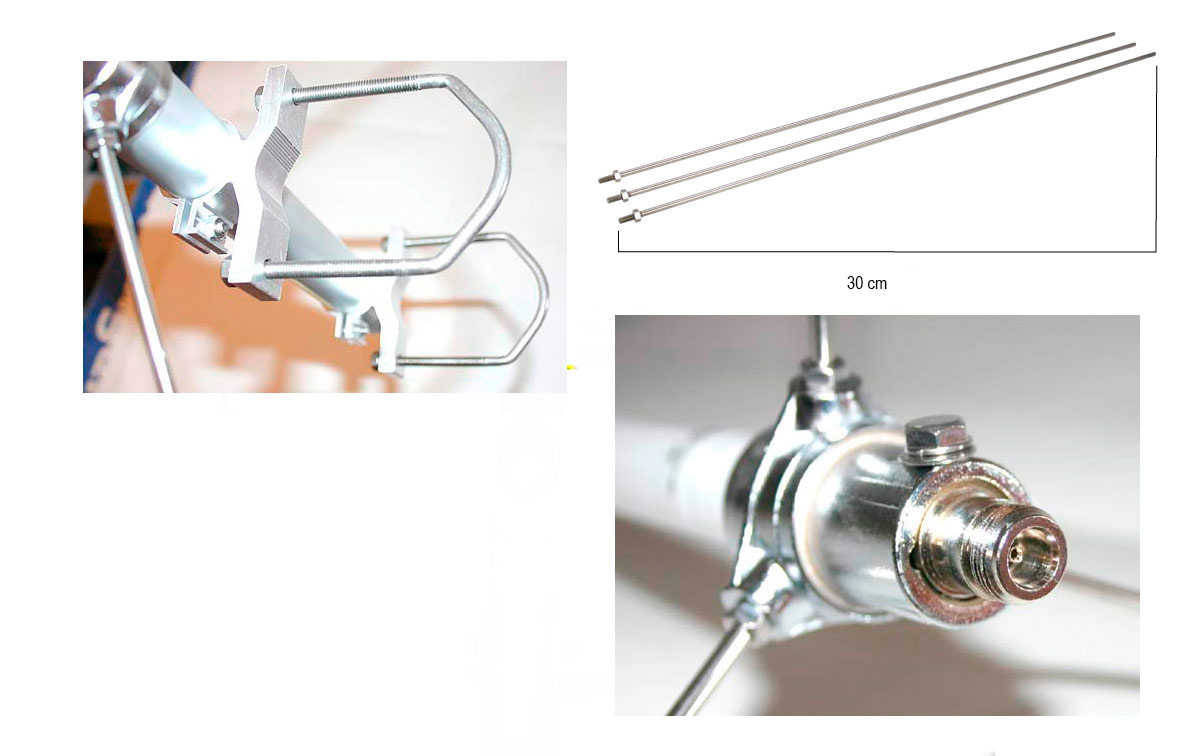

MAAS X-5000N Kit Contents

1 white fiber antenna 1 sections.
2 Flanges for mast from 30 mm to 50 mm
3 Radials length 30 cm.
1 English assembly manual.

maas-x-5000-n-antena-triple-banda-vhf-uhf-shf-144-430-1200-mhz-fibra-de-vidreo-longitud-1-5-metros

You may be interested in the PL adapter see link click <<< here >>>

Characteristics

Frequencies 144/430/1240 Mhz
Bands 2m / 70 cm/ 23 cm
Impedance: 50 Ohm.
VHF gain: 6.5 dBi
UHF gain: 9.0 dBi
SHF gain: 11.7 dBi
Maximum power: 200 watts.
Antenna material Fiberglass
Antenna length: 1.5 meters
White fiber color
ROE: 1.5 SWR
Connector: N female
Sections: 1
Radial: 3 rods length 30 cm.
Rod material: Stainless steel.
Maximum wind resistance: 50 m/sec (112.5 MPH)
Weight: 900 gr
