MAAS V-30-VHF VHF single band antenna 136 -174 MHz PL female connector

MAAS V-30-VHF VHF single band antenna 136 -174 MHz female PL connector. It has three radials length 52 cm. It can be installed on a mast with a diameter of 30 mm to 60 mm. Connection type PL female. White fiber antenna Length 1.24 m. A stretch. more Manufacturer: maas Reference MAASV30VHF

available
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Maas V30-VHF

The MAAS V-30-VHF antenna is a single-band antenna designed specifically for operations in the VHF frequency band, which spans 136 to 174 MHz.

Frequency Band: The antenna is designed to work in the VHF band, which is commonly used for amateur radio communications, mobile radio, and other services in this part of the radio frequency spectrum.

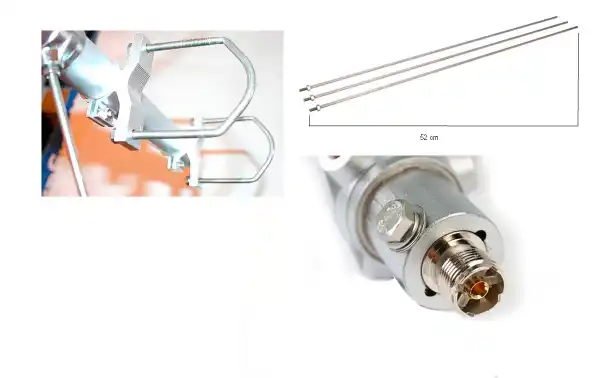

Female PL Connector: The MAAS V-30-VHF antenna is equipped with a female PL connector, which is a standard antenna connector used in many amateur radio and mobile radio applications in the VHF band.

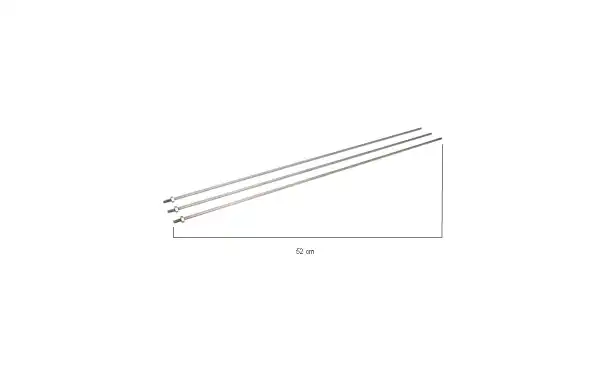

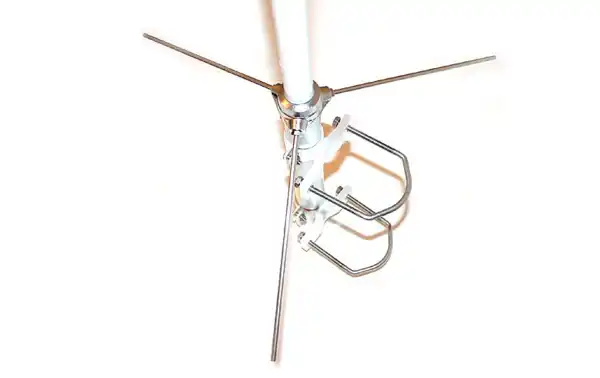

Radials: This antenna has three radials with a length of 52 cm each. Radials are metal elements that extend from the base of the antenna and help improve the efficiency of the antenna.

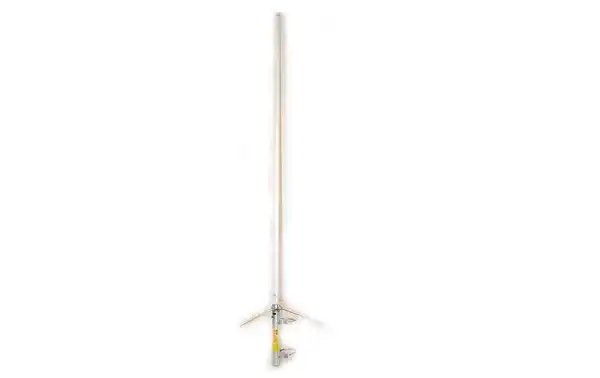

Mast Mounting: It can be installed on a mast with a diameter ranging from 30mm to 60mm, which provides flexibility in terms of where and how the antenna can be mounted.

Material and Color: The antenna is made of white fiber, which provides it with resistance and durability, as well as an aesthetic appearance.

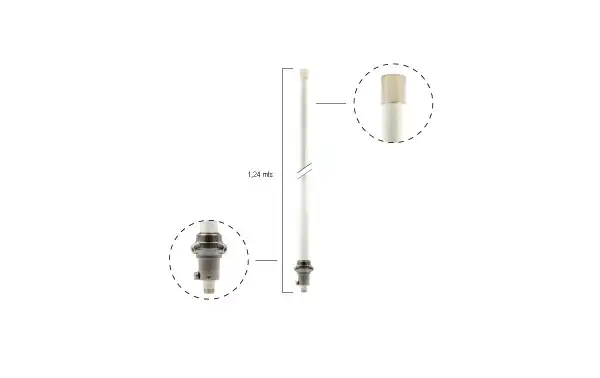

Length: The total length of the antenna is 1.24 meters, and it is a single section, which makes it relatively compact and easy to handle.

MAAS V-30-VHF is a single-band VHF antenna designed for the 136 to 174 MHz frequency band. Its design includes radials to improve antenna efficiency, and it can be mounted on masts of different diameters. Its female PL connector is standard on amateur radio and mobile radio equipment in the VHF band, making it easy to connect to compatible radio equipment. This antenna is a suitable option for those who wish to operate in the VHF band and need a reliable and easy to install antenna.

La antena MAAS V-30-VHF es una antena monobanda diseñada específicamente para operaciones en la banda de frecuencia VHF, que abarca desde 136 hasta 174 MHz.

MAAS V-30-VHF Kit Contents
  • 1 white fiber antenna
  • 2 Flanges for mast from 30 mm to 60 mm
  • 3 Radials length 52 cm.

La antena MAAS V-30-VHF es una antena monobanda diseñada específicamente para operaciones en la banda de frecuencia VHF, que abarca desde 136 hasta 174 MHz.

Characteristics

  • Impedance: 50 Ohm.
  • VHF gain: 3 dB
  • Material Fiber
  • Maximum power: 150 watts.
  • VHF wave length 1/2 (144 Mhz)
  • White antenna color
  • Antenna length: 1.24 meters
  • Section: 1
  • Weight: 800 grams
  • ROE: 1.5 SWR
  • Connector: PL female
  • Radial: 3 rods length 52 cm.
  • Maximum wind resistance: 60m/sec (135 MPH)
