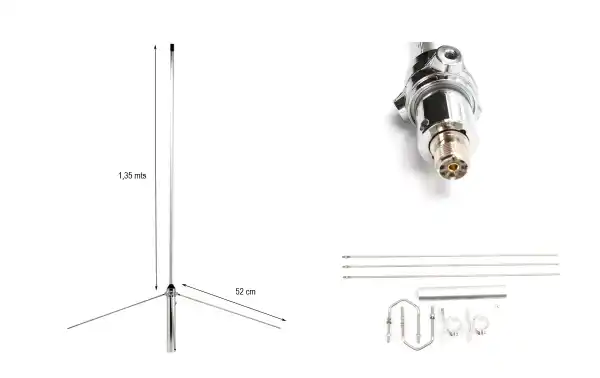

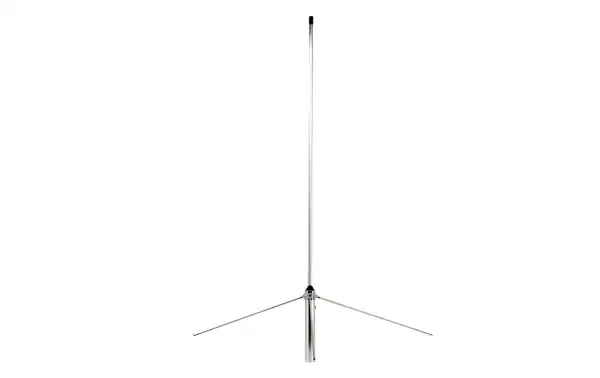

Maas VGP-30-A VHF Base antenna VHF144/174 Mhz. Length 1.35 meters

VGP-30-A VHF MAAS Germany. 5/8 omnidirectional base antenna for VHF from 144 to 174 Mhz. Adjustable by cutting board. It is made of aluminum and stainless steel. Bandwidth 4 Mhz. Gain 3.5dBi. 150 watts of power. PL connector more Manufacturer: maas Reference MAASVGP30AVHF

Make the first review

Maas VGP-30-A VHF Base antenna VHF144/174 Mhz. Length 1.35 meters

available

61,02€ incl. VAT

50,43€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

TORNADO-MAG-V/U

MAAS VGP-30-A Aluminum base mono band VHF antenna 144-174 MHz. VGP-30-A VHF MAAS made in Germany. 5/8 omnidirectional base antenna for VHF from 144 to 174 Mhz. Adjustable by cutting board. It is made of aluminum and stainless steel. Bandwidth 4 Mhz. Gain 3.5dBi. 150 watts of power. Female PL connector. Length 1.35 meters. Weight 0.8kg

Maas VGP-30-A VHF Antena base VHF144/174 Mhz. Longitud 1,35 metros

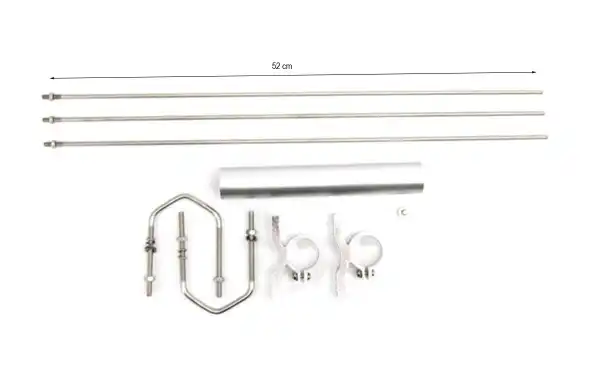

kit content

1 Base Antenna
2 mast support

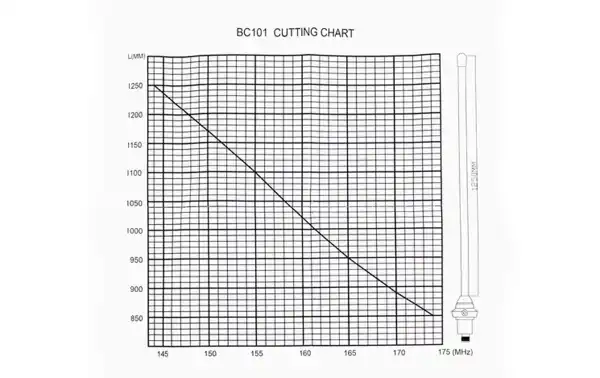

1 sheet with cutting board

Maas VGP-30-A VHF Antena base VHF144/174 Mhz. Longitud 1,35 metros

Features

Model VGP-30A
MAAS brand
SINGLE BAND format
Frequency 144 MHz / 5/8 wave
Gain 3.5dBi
Impedance 50 Ohms
Material Aluminum and Stainless Steel Flanges
Vertical Polarization
Frequencies 144 -174 Mhz adjustable by cut
Maximum power 150 watts
Stationary VSWR:1.5
PL Female Antenna Connector
Color Silver aluminum color
Antenna Length 1.35 meters
3 x radial length 52 cm
Bandwidth 4Mhz
Cable length 4 meters RG-174
Total weight 800 gr.
