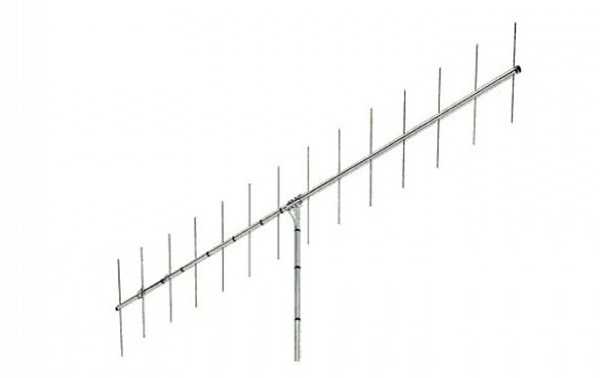

VB-214FM HY-GAIN Directive Antenna 14 elements 144-146 Mhz

HY-GAIN's VB-214FM directional antenna is an antenna designed to operate in the 144-146 MHz frequency band, which is commonly used for amateur radio and two-meter radio communications. It is 14 element, which means that it has 14 radiating elemen more Manufacturer: hygain Reference VB214FM

discontinued

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

VB-214FM

HY-GAIN's VB-214FM directional antenna is an antenna designed to operate in the 144-146 MHz frequency band, which is commonly used for amateur radio and two-meter radio communications. It is 14 element, which means that it has 14 radiating elements that are used to direct and focus the signal in a specific direction. The total length of the antenna is 4.60 meters, which includes all the elements and the support system. The directional antenna is an excellent choice when you want to improve the efficiency of communications in a particular direction, as it focuses radiation in that direction and often provides higher gain compared to omnidirectional antennas. This is especially useful for establishing long-distance communications with other stations in a specific direction. The HY-GAIN VB-214FM directional antenna is an antenna designed to operate in the 144-146 MHz frequency band.

See English PDF manual

Turning Radius (maximum)

kit content
  • 1 VB-214FM Antenna

Esto es especialmente útil para establecer comunicaciones de larga distancia con otras estaciones en una dirección específica. La antena direccional VB-214FM de HY-GAIN es una antena diseñada para operar en la banda de frecuencia de 144-146 MHz

Characteristics

  • Frequency 144-146 Mhz
  • 2 meter band

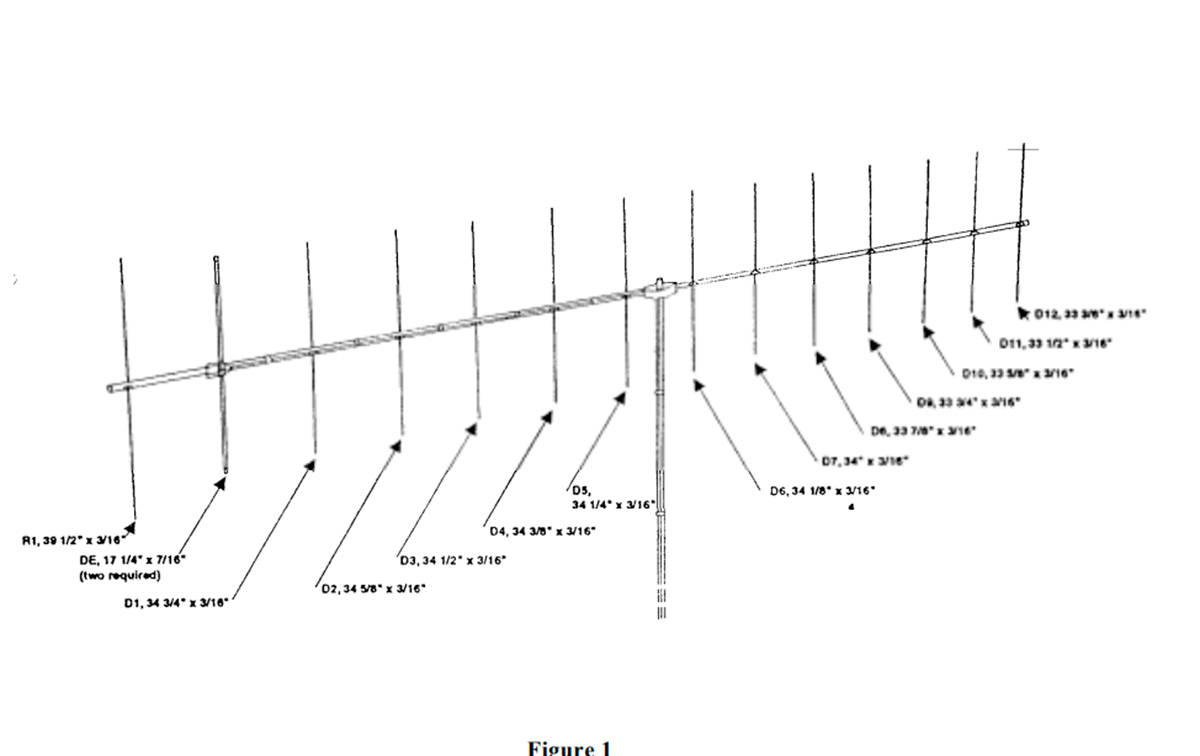

  • Yagi 14 elements
  • Continuous power 250 watts maximum 500 watts
  • Boom Diameter 32 mm
  • Boom length 4.72 meters
  • Gain 15.2dbi
  • F/B gain 20dB
  • Vertical or Horizontal Polarization
  • Resistance Wind speed 129 kmph
  • SWR 2; 1
  • Turning radius 2.41 meters
  • Bandwidth 4 MHz
  • Impedance 50 ohms
  • Minimum and maximum clamp 41 to 52 mm
  • Elements length 1 mts
  • Material Aluminum
  • Weight 2.5kg
