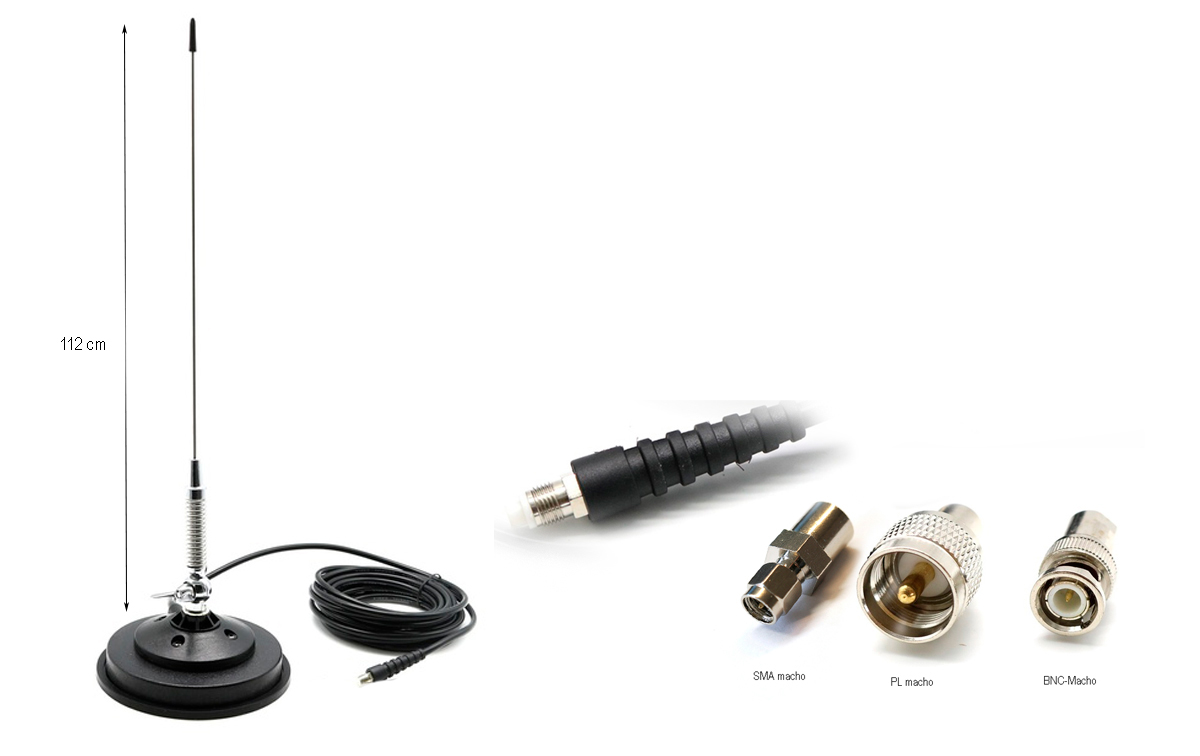

MAAS PM-7 Magnetic Antenna Frequency 68 to 88 Mhz PL SMA and BNC

MAAS PM-7 Magnetic antenna for walkies and transmitters Frequencies from 68 to 88 Mhz. Length 112 cm. Multiple connectors: PL, SMA and BNC. Thanks to its FME connection and the FME-PL MALE, FME-SMA MALE and FME-BNC MALE adapters, this antenna can be more Manufacturer: maas Reference MAASPM7

available
48,40 incl. VAT
40,00€ w/o VAT
Delivery price from 30,25€

Maas PM-7


MAAS PM-7 Magnetic antenna for walkies and radio stations Frequencies from 68 to 88 Mhz. Length 112 cm. Multiple connectors: PL, SMA and BNC. Thanks to its FME connection and the FME-PL MALE, FME-SMA MALE and FME-BNC MALE adapters, this antenna can be connected to the vast majority of walkies and radio stations on the market. Wing-type antenna to be able to tilt it if necessary, equipped with a spring. Thanks to its FME connection and the FME-PL MALE, FME-SMA MALE and FME-BNC MALE adapters, this antenna can be connected to most walkies and stations available on the market, providing great versatility of use. In addition, the antenna is equipped with a spring, which helps reduce mechanical stress in the event of impacts or sudden movements, providing greater durability and resistance. The MAAS PM-7 magnetic antenna is a practical and versatile option to improve signal reception in walkies and stations that operate in the frequency range of 68 to 88 MHz. Its compact design and the different connectors available make it compatible with a wide variety of communication devices. This magnetic base provides a strong hold and stability when placed on metal surfaces, such as vehicle roofs or other metal structures. Using a magnet base makes installation and mounting of the antenna easier, as no additional tools or drilling in the mounting surface are required. Simply place the magnet base on a metal surface and secure it firmly. The 13cm magnet base of the MAAS PM-7 antenna offers strong adhesion, ensuring the antenna stays in place even under conditions of movement or vibration. This is especially useful during vehicle travel, as the antenna will remain secured and will not come off easily. MAAS PM-7 Antena magnética Frecuencia 68 a 88 Mhz PL SMA y BNC

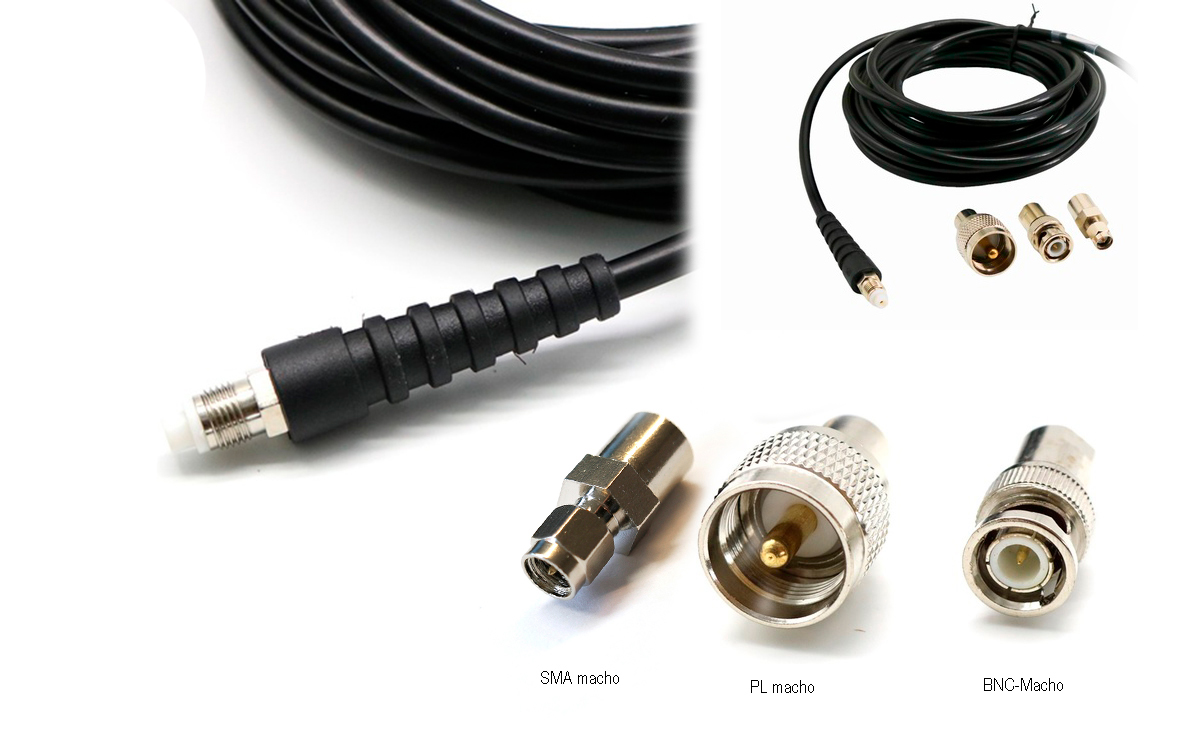

Kit content
  • 1 Antenna length 112 cm
  • 1 Magnet Base diameter 13 cm
  • 4 meters RG-58 cable
  • 1 male PL connector
  • 1 BNC male connector
  • 1 SMA male connector

MAAS PM-7 Antena magnética Frecuencia 68 a 88 Mhz PL SMA y BNC

Characteristics

  • Frequency: 68 to 88 Mhz
  • Gain 2.15 dbi
  • Impedance 50 ohms
  • SWR 1.2
  • Maximum power. 50 watts
  • Vertical polarization
  • Male PL connector
  • BNC male connector
  • SMA male connector
  • Antenna length 112 cm
  • 17/7 pH stainless steel rod
  • Weight 1.7 kg.
  • Length 4 meters RG-58 Cable
  • Magnet base diameter 13 cm.
