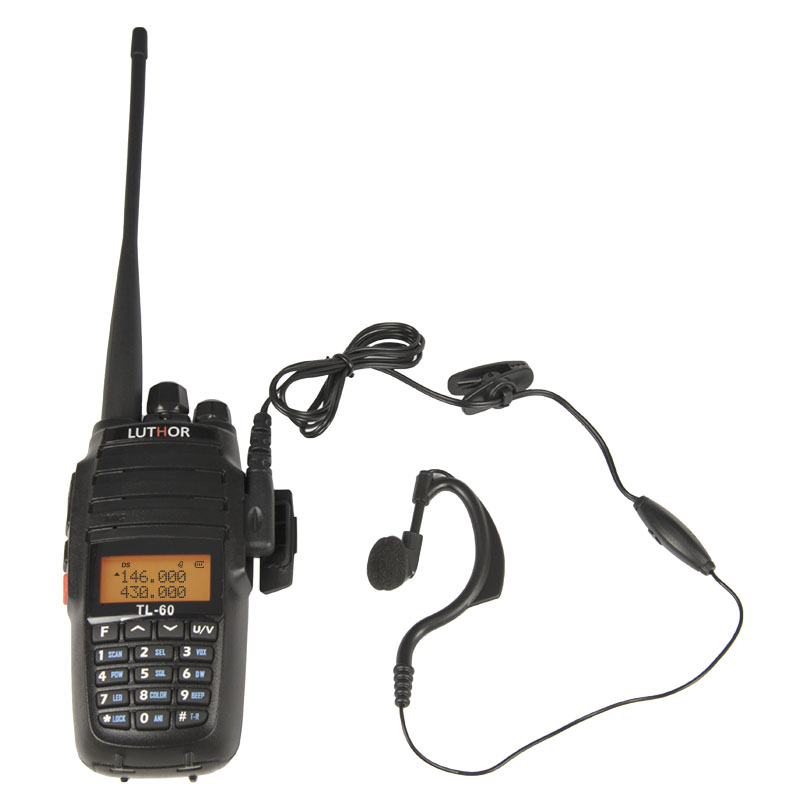

LUTHOR TL-60 Dual band VHF / UHF handheld 144/430 Mhz

LUTHOR TL-60

LUTHOR TL-60 Walkie Double Band 144/146 VHF-430/440 UHF, 10 watts!!!!

Frequency step 0.5 /2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 kHz

!! GIFT OF PINGANILLO PIN19K!!

! POWER 10 WATTS PINGANILLO GIFT!

Characteristics

• Frequency range: 144 ~ 146 MHz / 430 MHz ~ 440 MHz
• Channel spacing: 25 / 12.5 kHz
• Frequency step 0.5 /2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 kHz
• Working voltage: 7.2 VDC

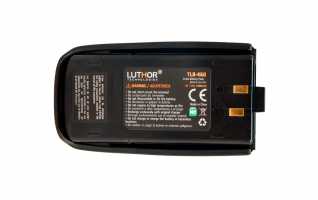

• Battery: 7.2 VDC (rechargeable Li-ion 3600 mA battery)
• Standby current: 50mA
• Operating temperature: -30 ° C - 60 ° C
• Antenna: 50 Ohm
• Size: 132 x 59 x 32mm
• Weight: 285g (without battery and antenna)
• RF Power: VHF: 10W / UHF: 9W / Low: 5W
• Modulation: 16K/F3E/11K/F3E
• Maximum deviation: less than 5 KHz / less than 2.5 KHz
• Sensitivity: -122 DBm (SINAD 12)
• The RF output power: 10W / 5W
• Current Consumption: TX: 10W: 2.8A / 5W: 1.8A Standby: 50mA
• Sensitivity 12dB SINAD - canc: -122dbm1
