Yaesu FT-3DE 144 VHF / 430 UHF Digital Dual Band Walkie Talkie with GPS

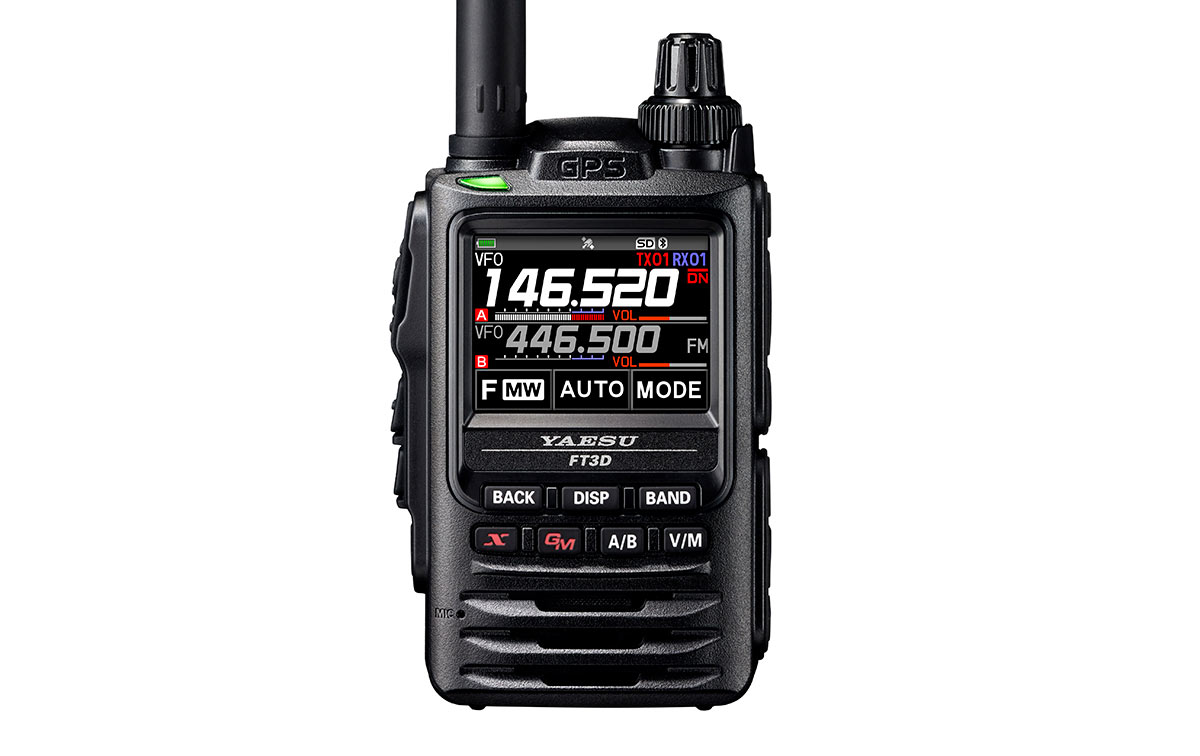

Yaesu FT-3DE

Yaesu FT-3DE Walkie talkie bibanda144 VHF / 430 UHF with GPS, compact FM digital walkies with touch screen AND high resolution full color TFT, high visibility and operability with simultaneous double reception. Yaesu presents the new FT-3DE, a dual-band device. The FT3DE is equipped with the AMS (Automatic Mode Select) function that automatically recognizes whether it is an analog or digital signal C4FM (digital system used by Yaesu). In addition, this walkie talkie is equipped to take advantage of the C4FM system in full, being able to transmit / receive voice and data. Thanks to this new system and with the combination of the MG-85A11U microphone, you can even transmit photographs.

The Yaesu FT-3DE is a new generation walkie talkie, with a very attractive design and a large TFT LCD display (320 x 240) that will allow you to view operations at a glance. Another of the novelties to highlight of the Yaesu FT-3DE is the incorporation of a slot for microSD memories, which facilitates and speeds up the saving of the configuration data of the equipment. Frequency steps: 5.0 / 6.25 / 8.33 / 9.0 / 10 / 12.5 / 15/20/25/50/100 khz.

• 1 Yaesu FT-3DE Walkie
• 1 Antenna YHA-62
• 1 SBR-14LI 7.2V 2200mAh lithium battery
• 1 Belt Clip SHB-13
• 1 Charger PA-48
• 1 USB cable

• Wide Rx: Band A 0.5-999 Mhz and Band B 180-580 Mhz
• Channels: 1245
• C4FM digital V / D, voice FR mode, FR data mode and FM radio
• User-friendly digital operations with AMS (Automatic Mode Select)
• Large screen
• LCD screen with instant image
• Audio Power: 700mW
• Smart navigation
• GPS function (66 Channels)
• Snapshot function and image data transmission
• V / V, T / T, V / U dual watch and digital C4FM
• Dual Monitor AF
• Equipped with micro SD card slot
• IPX5 waterproof rating
• Weight: 282 g (with antenna and battery)
• Size: 62 x 100 x 32.5mm (with antenna)
• Instantaneous capacity function for transmission / reception of image data
• Frequency Ranges: A (main) RX Band: 0.5 to 1.8 MHz (AM Broadcast)
• 1.8 to 30 MHz (SW Band) 30-76 MHz (50 MHz HAM)
• 76-108 MHz (FM Broadcast) 108-137 MHz (Air Band)
• 137-174 MHz (144 MHz HAM) 174-222 MHz (VHF Band)
• 222-420 MHz (GEN1) 420-470 MHz (430 MHz HAM)
• 470-774 MHz (UHF) 774 to 999.90 MHz (GEN2)
• B (Sub) RX Band: 108-137 MHz (Air Band)
• 137-174 MHz (144 MHz HAM)
• 174-222 MHz (VHF Band)
• 222-420 MHz (GEN1)
• 420-470 MHz (430 MHz HAM)
• 470-580 MHz (UHF)
• TX: 144-146 MHz, 430-440 MHz
• Circuit Type: NFM / AM: Double Conversion Superheterodyne
• FM / AM Radio: Direct Conversion
• Modulation type: F1D, F2D, F3E, F7W
