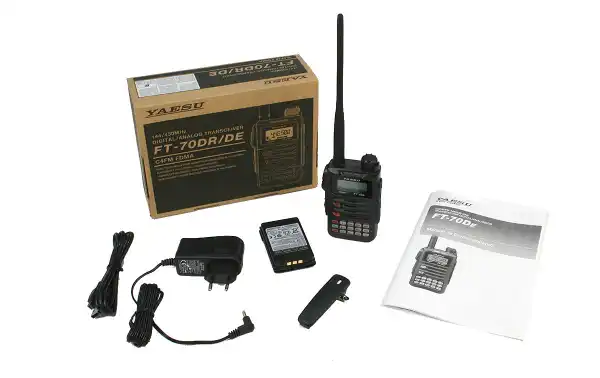

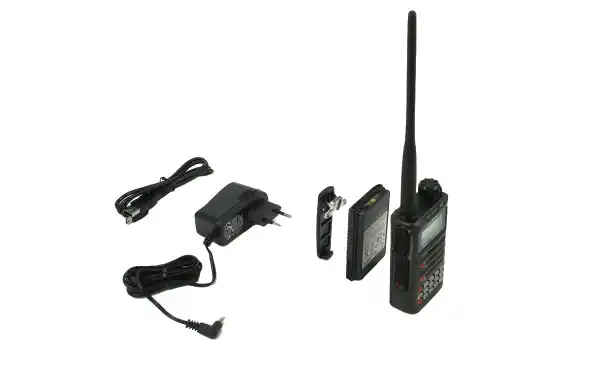

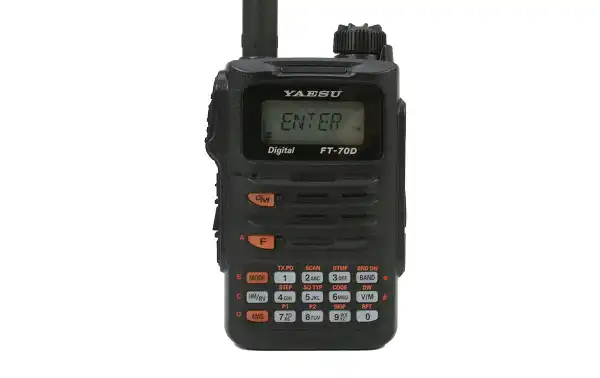

YAESU FT-70DE analog and digital Dual Band 5W Handheld Transceiver

YAESU FT70DR

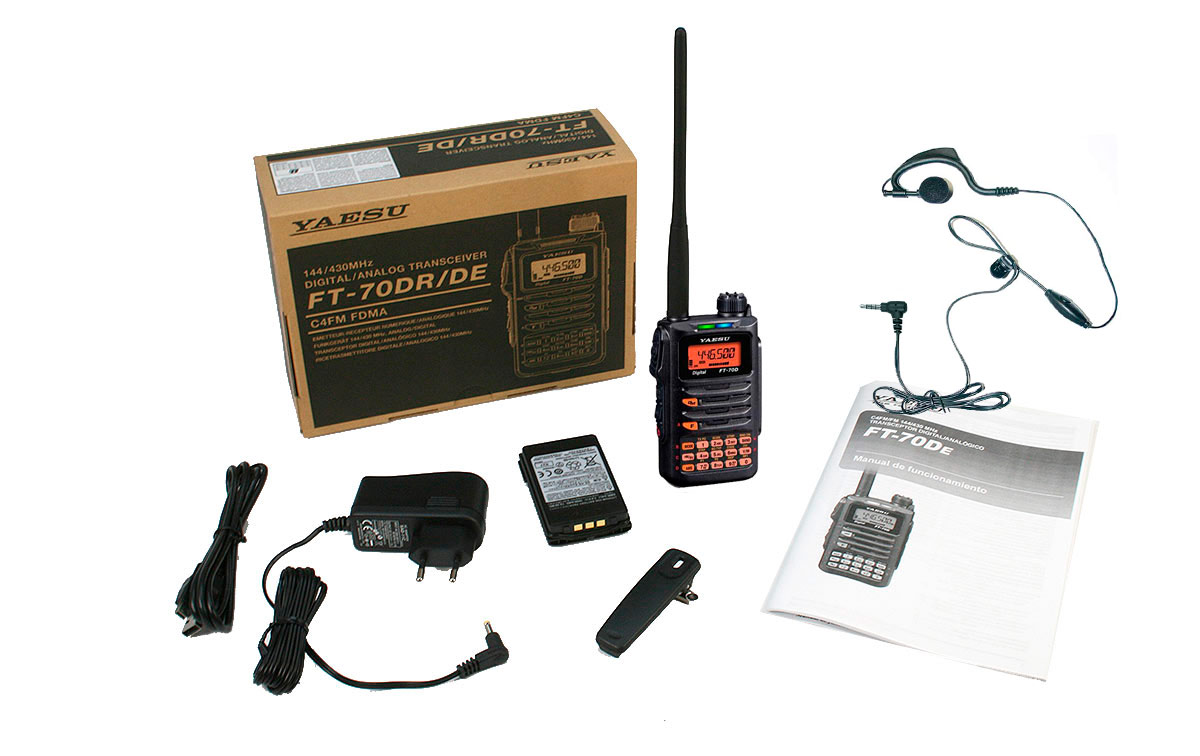

Yaesu FT-70DR/DE Analog and digital dual-band walkie talkie C4FM 144/430 Mhz. ! PIN19-Y PINGANILLO GIFT!
The FT-70DR provides up to 5W of RF power, and its large front-facing speaker delivers 700mW of audio output. The new digital FT-70DR includes our exclusive Automatic Mode Select (AMS) feature. AMS detects the operating mode of the received signal as either digital FM or analog C4FM, and then automatically and instantly switches the receiver to the appropriate mode. Users do not need to manually switch between modes. The multi-color LED mode indicator displayed on the front allows the operator to easily see which mode the FT-70DR is in at any given time. Another distinctive feature of the FT-70DR is the Digital Group Monitor (GM) with DG-ID (Digital Group Identification) and DP-ID (Digital Personal Identification) now included on the FT-70DR, to simplify GM operation. The FT-70DR is built to commercial grade standards including IP54 rating for dust and water protection making this radio suitable for operation in the harshest environments. Programmable VFO Scan, scans all channels in the desired frequency range, Memory Scan allows scanning of user selectable frequencies, Priority Channel Scan can be used to scan memory channels while a channel is a priority.
Automatic Mode Selection (AMS)
The automatic mode selection function detects the reception signal mode
The transceiver automatically selects one of four communication modes according to the received signal. This is very convenient when listening to communications, as you do not need to be aware of the other party's communication mode. The transceiver can also be operated in a fixed communication mode. Other advanced features include: External DC jack for DC supply operation and for charging the battery,
Mini USB port for convenient programming and software upgrades, CTCSS/DCS operation, Auto Power Off (APO) function
, RF squelch, transmitter exit timer ), and busy channel lockout (BCLO).

Yaesu FT-70D: Power, Versatility and Digital Technology in your Hands!

Spanish PDF manual >>> see here <<<<

Characteristics

• Receiving frequency: 108-579.995 MHz.
• Transmission frequency: 144-146 MHz (VHF), 430-440 MHz (UHF).
• Modes: Analog FM and C4FM (System Fusion).
• Tuning step: 5, 6.25,8,33, 10, 12.5, 15, 20, 25, 50, 100 kHz.
• Output power: 5W (high), 2.5W (medium), 0.5W (low).
• Dual band: VHF and UHF.
• Memory Channels: 1105 memory channels.

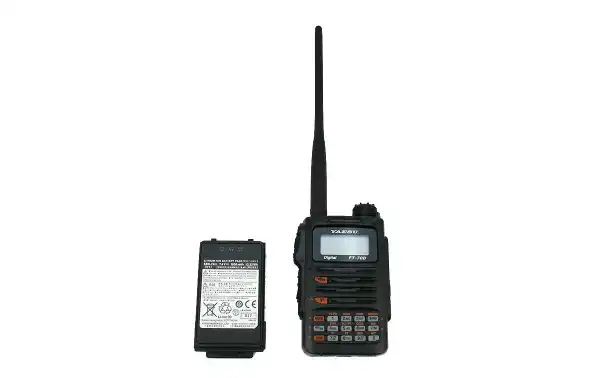

• Rechargeable 7.4V lithium-ion battery with a capacity of 1800 mAh, mod. SBR-24Li.
• Battery life: Approximately 9 hours in normal operation.

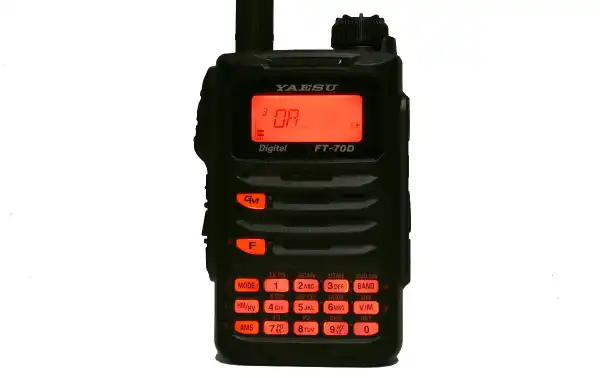

• Display: LCD with backlight.
• Water protection: IP54 certification.
• VOX: Voice activated transmission function.
• Antenna connector: SMA type.
• CTCSS/DCS Tone: Analog and digital tones for opening repeaters.
• AMS (Automatic Mode Select): Automatically switches between FM and C4FM.
• APRS Function: Digital traffic monitoring and GPS location.
• Keyboard lock: To prevent accidental changes.
• PC programming: Compatible with programming software.
• Weight: Approx 280g with battery and antenna.
• Dimensions: 60 x 98 x 33 mm (not including antenna).
• ARTS Function: Automatic Range Check.
• Audio Output: 700mW for clear and loud audio.
• External power: Compatible with 12V via adapter.
• Scanning: Scanning bands, memory channels, and tones.
• Digital Repeaters: Support for System Fusion repeaters with Wires-X.
• These features highlight its key functions for amateur radio operators.
• For more information and features, see manual >>> click here <<<
