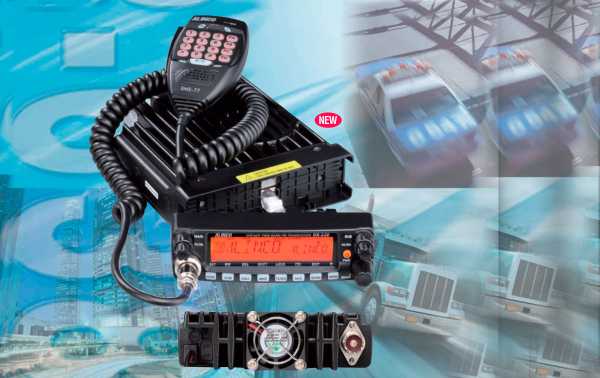

ALINCO DR-638H BI-BAND transmitter 144/430 MHz power 50 watts

ALINCO DR-638H Dual-Band Station 144/430 Mhz. 2m/70cm Dual Band Amateur Mobile Radio. Power 50 watts, with removable cover (EDS-28 separation kit not included). DR-638H incorporates 758 memories, different types of scanners, 50 W of power, CTCSS/ DCS more Manufacturer: alinco Reference DR638H

Make the first review

alinco
ALINCO DR-638H BI-BAND transmitter 144/430 MHz power 50 watts ALINCO DR-638H BI-BAND transmitter 144/430 MHz power 50 watts Alinco DR-635 now called DR-635HE is a dual band VHF/UHF transceiver with a maximum power of 50 W in VHF and 40 W It has a large alphanumeric display, 758 memory channels, multiple and reduced frequency jumps, MIL-STD810 standards Large alphanumeric LCD display with color illumination, illuminated keys and microphone keypad for use in low light situations Bands: UHF and VHF Operation on: UU, UV, VU, VV Dimensions: 139 x 40 x 212mm Frequency jumps: 2.5, 5, 6.25, 10, 12.5, 15, 20, 25, 30 and 50 kHz.
ALINCO DR-638H BI-BAND transmitter 144/430 MHz power 50 watts
available
325,27€ incl. VAT
268,82€ w/o VAT
Delivery price from 30,25€

ALINCO DR-638H


ALINCO DR-638H Bibanda 144/430 Mhz transmitter. 2m/70cm dual band amateur mobile radio. Power 50 watts, with removable cover (EDS-28 separation kit not included).
DR-638H incorporates 758 memories, different types of scanners, 50 W power, CTCSS/DCS subtones.
Its robust construction makes it ideal for work in the car, expeditions, etc... .
The DR-638H is an amateur radio transceiver with advanced features. The DR-638H is DOUBLE BAND, that is to say the traditional V and UHF of any bi-band mobile.
When we need our transceiver to work continuously at full capacity, it is there where it also marks distances. Its 50W in VHF and 20W in UHF are real, we will not have problems that the final step goes to QRP because we have overheated it.

Programming software for DR-638H download here in link (Software)
The optional ERW-12 cable is required for programming.

alinco dr-638h emisora bibanda 144/430 mhz. radio móvil amateur de doble banda de 2 m/70 cm. potencia 50 watios, con caratula extraible (kit separacion eds-28 no incluido ).

ALINCO Kit Contents
  • 1 Alinco DR-638H transmitter
  • 1 Microphone with DTMF keyboard ref. EMS-77
  • 1 12v power cable.

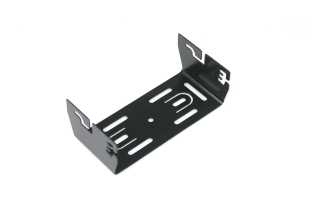

  • 1 Transmitter support ref. ADFM-78
  • 1 Microphone support
  • 1 Bag with screws
  • 1 Handbook

Characteristics

  • Biband FM bands 144/ 430 MHz.
  • Dual band reception. VU/VV/U U.
  • Selectable tone 1000 Hz / 1450 Hz / 1750 Hz / 2100 Hz.
  • voice compressor. Ultra robust construction.
  • Remote installation option.
  • High power 144 Mhz 50W (430 MHz: 40W).
  • Programmable microphone with keyboard.
  • Luminous display.
  • 50 CTCSS tones/104-DCS coded tone system.
  • 758 channel memory.
  • Menu 27
  • PC programming
  • PL-Female connector
  • keyboard lock
  • External speaker connection
  • VHF power: low 5w. / medium-1-25w. /medium-2-10w / high 50 w.
  • UHF power: low 5w. / medium-1-25w. /medium-2-10w / high 40 w.
  • frequency scan
  • External 3.5mm speaker outputs
  • Frequency steps 2, 5 /5 / 6.25 / 10/ 12.5 / 15 / 20 / 25 / 30 / 50 kHz
  • Power supply 13.8 volts
  • Measurements with cover 139 x 40 x 212 mm
  • Weight 1.1kg
