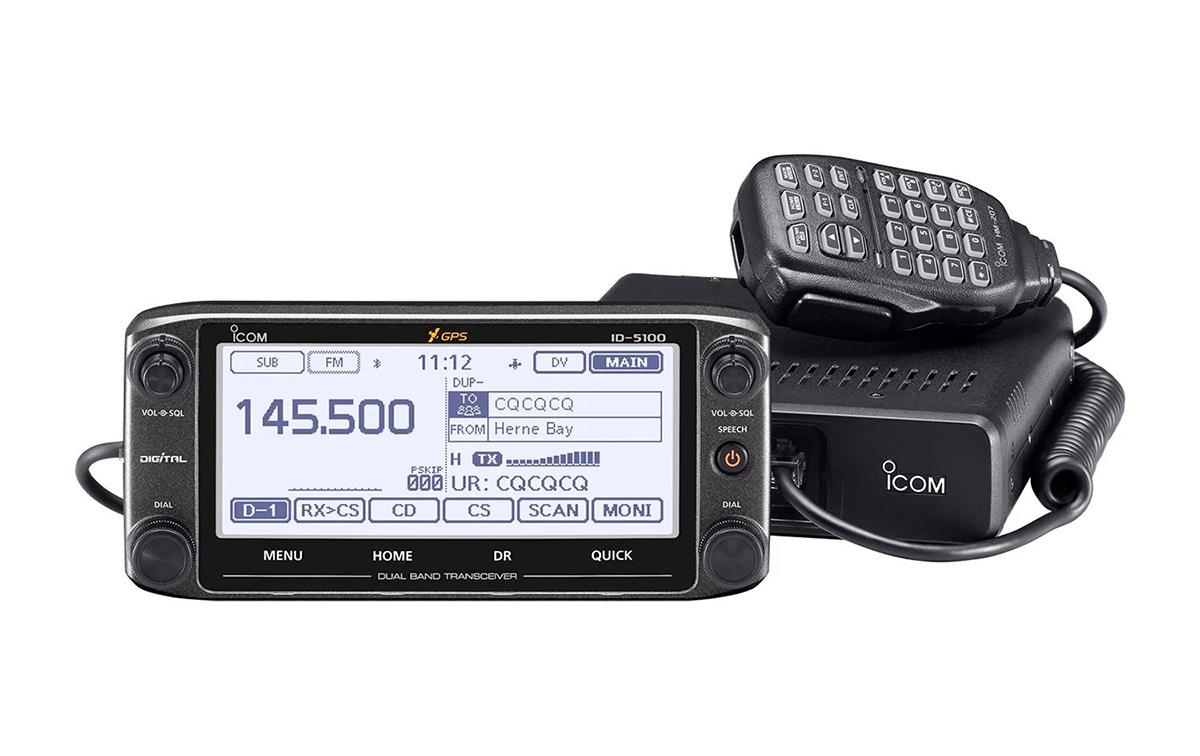

ICOM ID-5100E
The ID-5100E is a dual-band mobile transceiver operating on the 2-meter and 70-centimeter frequencies, supporting FM and D-Star modes, as well as AM reception for the aeronautical band. Unlike other dual-band transceivers, the ID-5100E allows monitoring of two frequencies simultaneously, even in digital mode, meaning two D-Star signals can be received simultaneously. It is also possible to combine analog/analog or analog/digital modes.
Operation on the D-Star follows the ID-51E design, including the "Home" button function, and repeater lists can be easily updated via an SD card, which also allows for QSO (contact) recording. The touchscreen significantly improves usability, especially useful for mobile operation, allowing quick access to functions while driving.
In terms of design, the control unit measures 182 mm x 81.5 mm x 24.7 mm and weighs just 260 g, while the main unit is compact at 150 mm x 40 mm x 173 mm and 1.3 kg, making it easy to install in vehicles or confined spaces. The device can be powered by a 13.8 V / 13 A power supply, making it suitable for stationary or mobile use, perfect for field trips or expeditions.
The optional UT-133 module adds Bluetooth connectivity, enabling hands-free headset use and remote control of the transceiver from an Android smartphone using the free Icom app, facilitating wireless operation without the need to constantly press the PTT button.
The ID-5100E includes a GPS antenna integrated into the control unit, allowing immediate use of features such as D-PRS (Digital Position Reporting System) for position tracking. It also supports D-Plus functions, which allow connection to D-Star reflector networks, making it easy to connect to specific regions like a chat room, all accessible directly from the transceiver. Icom has incorporated these practical features, developed by amateur radio enthusiasts, to offer a complete and adaptable package.
Kit contents
- 1 Icom-ID-5100E Transmitter
- 1 Power cable
- 1 HM-207 Microphone
