LUTHOR TLM-909-DESERT
LUTHOR TLM-909 Multiband transmitter 4 Bands 29/50/144/430 MHZ extendable cover to put the station for example in the trunk and the head of the station on the dashboard of the vehicle.
Special mounting kit without drilling holes in sheet metal with 4-band antenna ref. DXUHV4 ideal for this four-band station.
TLM-909 incorporates 800 memories, different types of scanners, 50 W of power, CTCSS / DCS undertones. The TLM-909 New multiband 29/50/144/430 FM mobile, to work in Full Duplex, cross band and double receiver.
Its robust construction makes it ideal for work in the car, expeditions, etc ....
The TLM-909 is a complete radio amateur transceiver with advanced features. The TLM-909 is CUTRO BANDAS, that is, the traditional V and UHF bands of any bi-band mobile and also includes the 6 meters, the so-called magic band for its mixed propagation possibilities and the 29 MHz band of 10 meters, very interesting for both local and long distance contacts in FM mode.
Actually the TLM-909 is two teams in one, each division of the front has its own volume and squelch controls which greatly facilitates its handling when controlling 2 simultaneous frequencies, we have up to 8 possible combinations between VHF, UHF, 6m and 29 MHz, all of them in full duplex mode, double reception.
When we need our transceiver to work continuously at full capacity, there is where LUTHOR also marks distances, Its 50W in VHF and 35W in UHF are real, we will not have problems that the final step goes to QRP because we have overheated it. Internally, the TLM-909 is provided with a thermal sensor so that if it exceeds the control temperature, the fan automatically jumps, disconnecting later.
Its 800 alphanumeric memories allow us to adjust all the available characteristics, even band changes through the 6 hyper memories.
In the 29/50 Mhz band modulation in AM / RX and modulation in FM / RX / TX
Spanish Manual PDF
Programming software download
You need the TLUSB-106 cable not included

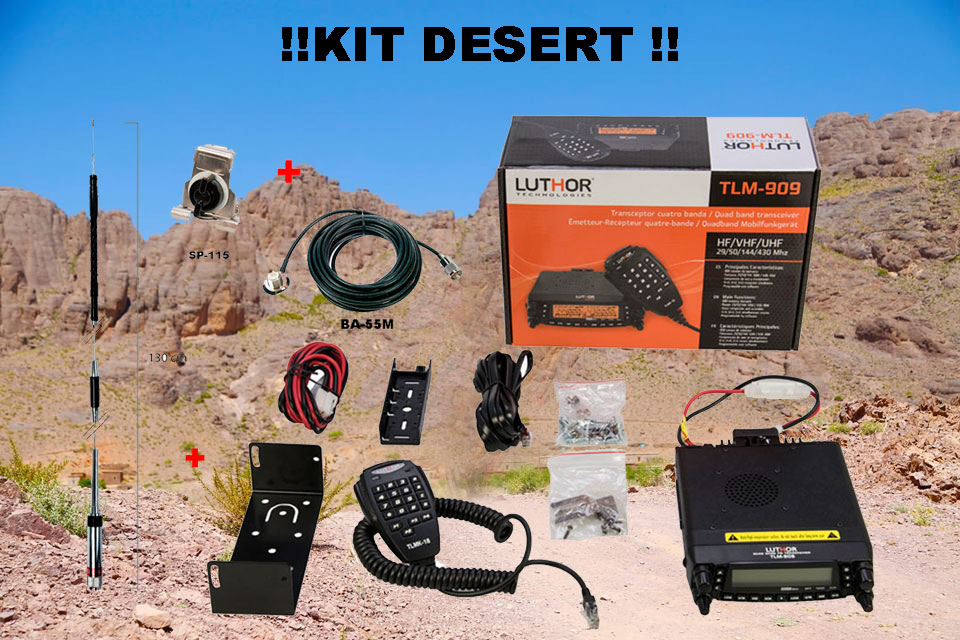

LUTHOR TLM909 Kit Contents
