YAESU FTM-150-E-ASP BI-BAND DIGITAL mobile transmitter 144/ 430 Mhz
The FTM-150E ASP enables true dual-band operation with two different receivers on different bands or within the same band (V+V, U+U, V+U, U+V). Its full dot-matrix display offers a clear and crisp graphical display of the radios operating status. Th moreManufacturer:yaesuReference FTM150EASP

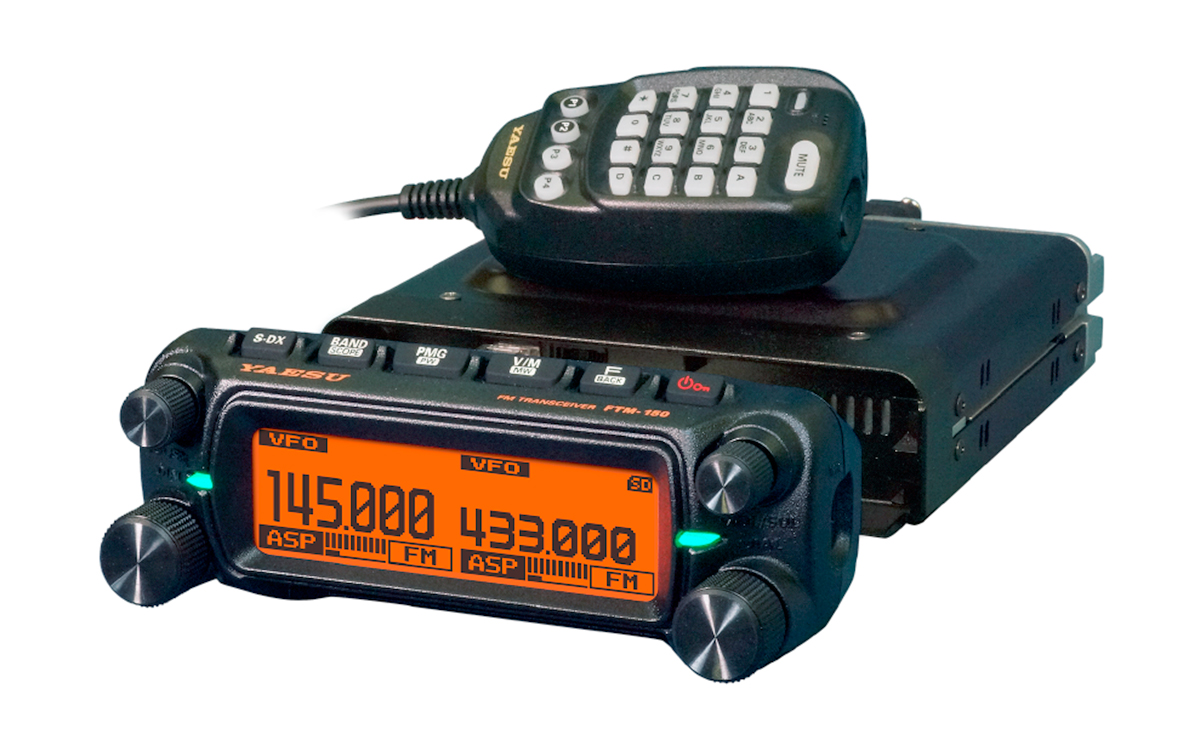

The FTM-150E ASP enables true dual-band operation with two different receivers on different bands or within the same band (V+V, U+U, V+U, U+V). Its full dot-matrix display provides a clear, crisp graphical display of the radio's operating status. The front panel is detachable, and by using the optional SJMK-500 swivel head accessory, the angle can be flexibly adjusted for easy mobile operation.

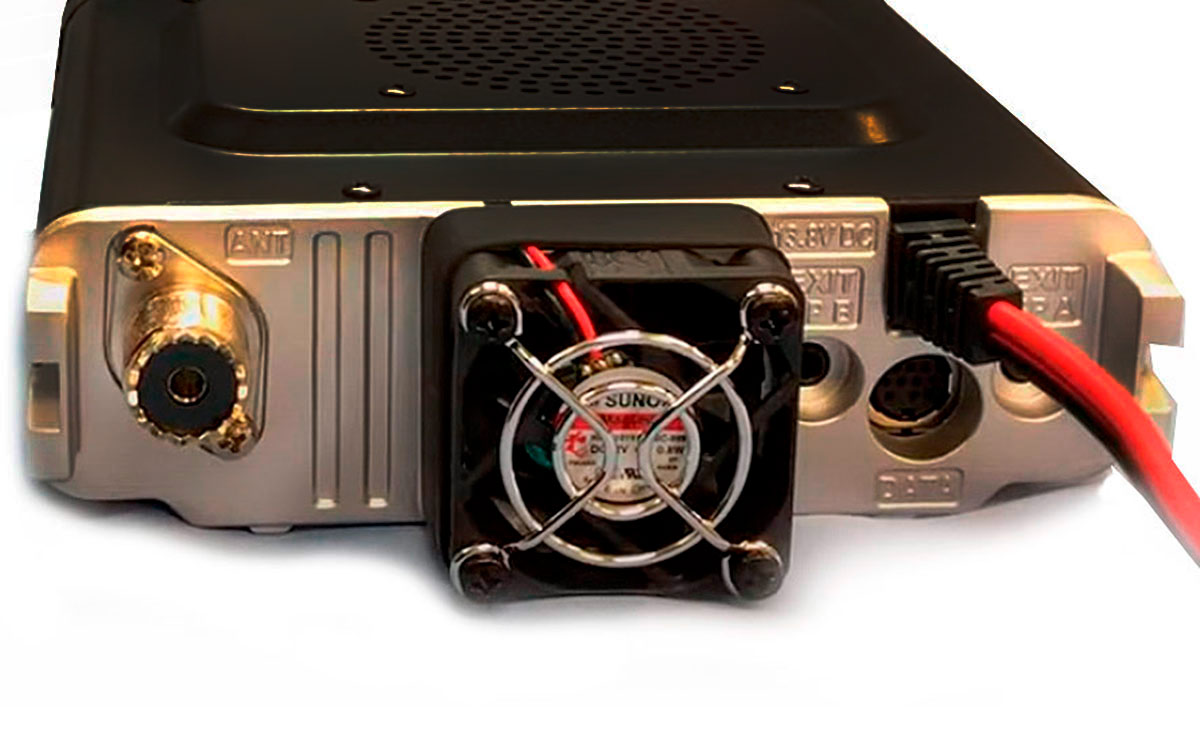

The output power is selectable between 55W in VHF, 50W in UHF, 25W or 5W. Its heavy-duty heat sink with FACC (Funnel Air Convection Conductor) technology ensures stable and reliable transmission power.
The front panel includes a built-in speaker, which together with the main body speaker, provides a total of 6W of high-quality audio (3W: front speaker / 3W: body speaker). The volume level of the body speaker is adjustable (0100%) relative to the front panel speaker, depending on user preference.
The Super-DX function increases the receiver's sensitivity and improves reception of weak signals. By activating the ASP (Audio Digital Signal Processing) function with the Super-DX key, reliable audio quality is guaranteed for weak signals, extending the communication range.
Some notable and convenient features of the FTM-150E ASP include:
PMG (Primary Memory Group): Up to 5 VFO or memory channel frequencies can be assigned to the PMG. The reception status of the PMG channels is displayed in real time by a bar graph on the PMG screen. AUTO or MANUAL mode can be toggled by holding down the main VFO knob during PMG operation. In AUTO mode, up to two channels are displayed simultaneously when signals are received, and transmission automatically moves to the received channel. In MANUAL mode, transmission and reception remain on the manually selected channel, while the received signal on the other channel is displayed on the screen and audio can be heard.
CFL (Custom Function List): Up to 9 frequently used functions, selected from the 62 available menus, can be easily registered and selected for added convenience.
High Power Audio Output Loud 3 Watts Audio outputs with the internal speaker.
8 watts of power via optional external speaker (MLS-200-M10)
Frequency range
APRS Included 1200/9600bps APRS (Automatic Packet Reporting System) data communications capability included.
Cross Band The FTM-500DE is cross band in analog mode, a very important feature for emergency situations, etc.
GPS Included Built-in GPS receiver and antenna provides location, time, direction and APRS information. A GPS logging function is included. External GPS devices can be connected.
Smart Navigation Function
Real-time navigation function allows checking location at any time.
Backtrack Function
Voice guide and recording function
Optional Voice Guidance Unit (FVS-2) announces your operating frequency, current band shift and APRS® messages.
You can record up to 5 minutes of received signals, or record continuously over the last 30 seconds of received audio.
Real-time band coverage with uninterrupted RX audio
500 memory channels for each A (Main) Band and B (Sub) Band
Storing memory channels and personal settings on an inserted Micro SD card
By using a micro SD card, it is easy to copy and transfer radio data to other compatible radios
Versatile Scanner Receiver for Enthusiasts (VFO, Scan Memory, etc.) Monitoring
Analog and digital clock
Timer Function: Event timer with lap or countdown functions.
