MANSON SDC-5340 Reducer input 24 volts output 12-15 volts DC.40 amp

MANSON / MAAS SDC-5340 ultra-compact reducer. With a DC input from 19 to 33 volts. Provides 12-15 volt output at 40 amps continuous. It is Ideal for devices sensitive to their supply voltage thanks to the configurable output voltage range between 12 more Manufacturer: manson Reference SDC5340

discontinued

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

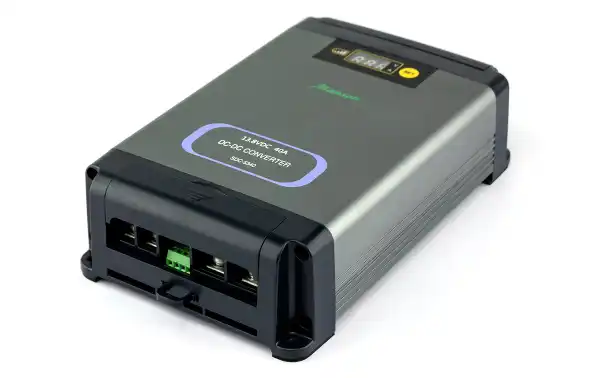

Manson SDC-5340

MANSON / MAAS SDC-5340 ultra-compact reducer. With a DC input from 19 to 33 volts. Provides 12-15 volt output at 40 amps continuous. It is Ideal for devices sensitive to their supply voltage thanks to the configurable output voltage range between 12 and 15 volts) that can be selected digitally in steps of 0.2V. The SDC-5340 is a very high-performance professional DC-DC voltage reducer with ultra-compact measurements of only 200 x 130 x 55 mm. In addition to its enormous reliability and stability, it offers an extensive list of features:
A separate always-on auxiliary output (0.5A, 13.8V) to power critical electronic devices or the remote on/off switch.
Two-stage battery charging function with 14.3V bulk charge and 13.6V float charge.
Three-digit LED display for voltage, current, operating mode and protection / fault diagnosis.
It has a remote control connection for manual or automatic switching on and off of the output voltage.
Remote voltage measurement for optimal and accurate power supply of remote loads or batteries to be charged.
Alarm output (13.5 V / 0.25 A) to power an external warning device (if input voltage is less than 19 V)
Separate permanent output (13.5V / 0.5A) for the power supply of electronic devices or a manual remote switch.
Fault protection and error code indication on the screen, auto-reset.

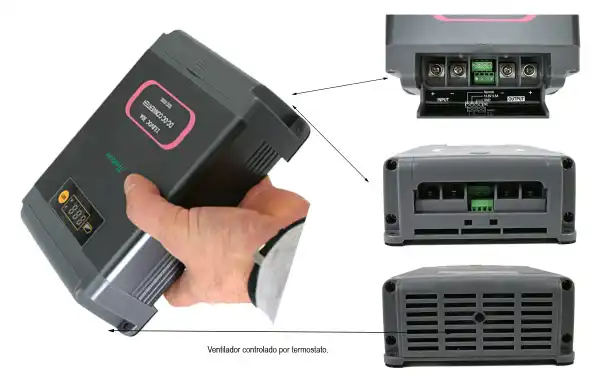

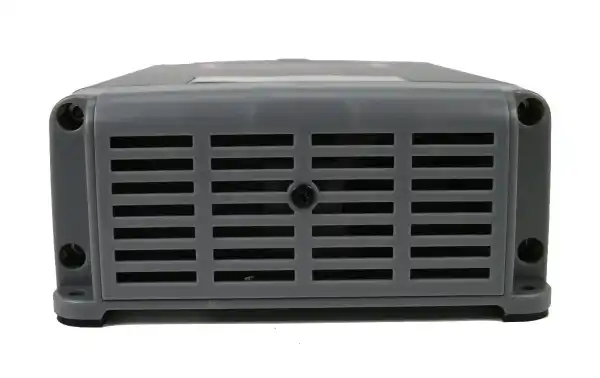

Thermostat controlled fan.

Pantalla LCD de 3 dígitos para corriente, voltaje, modo de operación y diagnóstico de protección

kit content
  • 1 SDC-5340
  • 4 round terminals

reductor entrada 24 volts dc salida 12-15 volts

Characteristics

  • Reduced from 24 volts to 12 volts
  • Maximum output 40 Amps
  • Microprocessor control with switch mode power design.
  • 19 -36 Vdc input with output adjustable from 12 to 15 Vdc in 0.2 V steps.

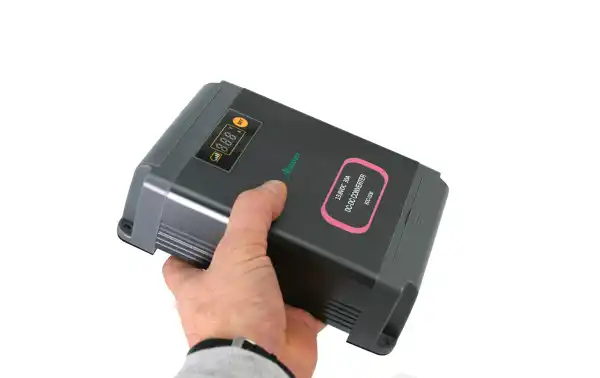

  • 3-digit LCD display for current, voltage, operating mode and protection diagnostics.
  • 2-stage full power charger mode with 14.3V bulk charge and 13.6V float charge.
  • Remote voltage sensing for optimal power from remote charging or battery charging.
  • Auto on/off remote control terminal with power control and another external on/off switch.
  • 8 safeguard protections of which 6 with diagnostic code on the LED display.
  • Low input voltage warning has remote alarm connection.
  • Low voltage input (self-recovery)
  • Input overvoltage (internal fuse)
  • Output overvoltage (self-recovery)
  • Output short circuit (self-recovery)
  • Output overload (self-recovery)
  • Output (battery) polarity reversed (internal fuse)
  • Over temperature (self-recovery)
  • Silent fan operation
  • Measurements: 130 x 55 x 200mm
  • Weight: 1.2kg.
